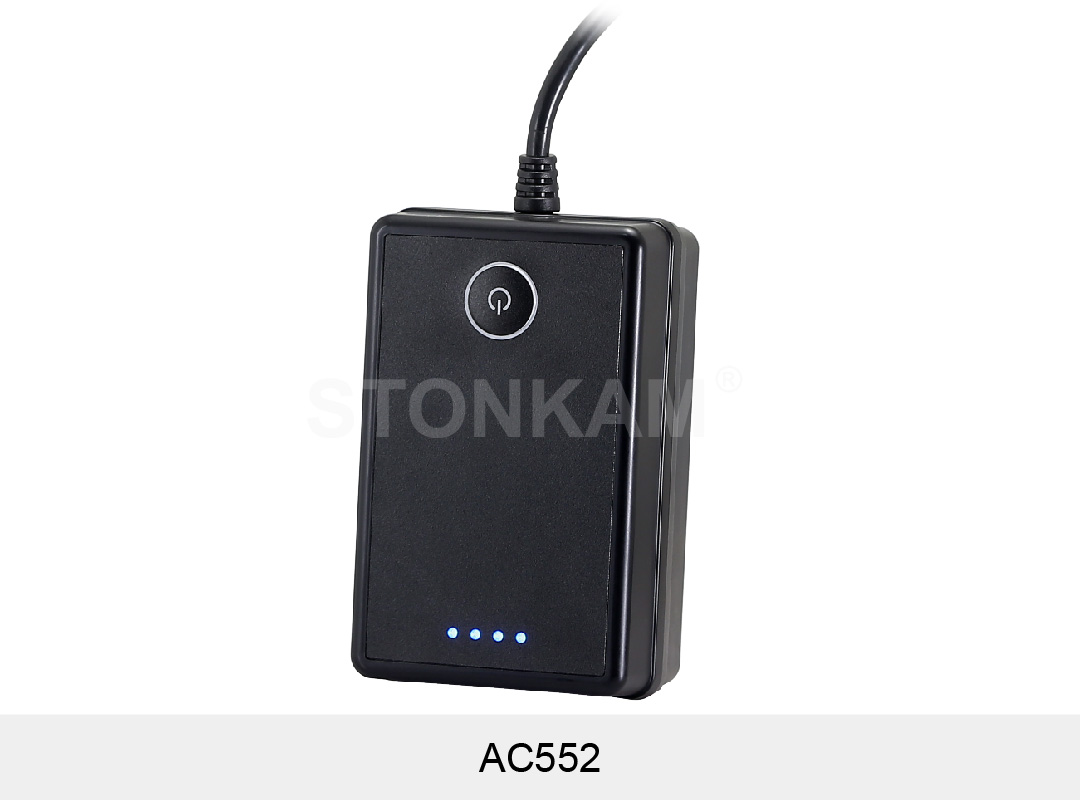

Rechargeable battery pack

AC552

Rechargeable battery pack with Battery Capacity 9600mAh,Charging Voltage DC5~24V ,Charging Time12/24V/2.5H, 5V/7H,Discharging Voltage 9.5~12.6V/1.5A(MAX),etc.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Fast charge
Wide input voltage
Low standby power loss(less then 1mW)
Capacity instructions
Overcharge protection
Over discharge protection
Over current protection
Short protection
Temperature protection
Load detection
With Strong magnetic

Battery Capacity	9600mAh/3.6V
Charging Voltage	DC 5~24V
Charging Current	5V:2.7A MAX 12V:1.8A MAX 24V:0.9A MAX
Charging Time	2.5H（DC 12/24V at 25℃） 7H（DC 5V at 25℃）
Discharging Voltage	9.5~12.6V 1.5A MAX
Discharging Time	17.5H（160mA）
Charging Temperature	-10~45℃
Discharging Temperature	-20~60℃
Storage Temperature	-20~60℃
Waterproof Rating	IP69K
Dimension	100.564.540.7（mm）
Weight	400g

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Fast charge

Wide input voltage

Low standby power loss(less then 1mW)

Capacity instructions

Overcharge protection

Over discharge protection

Over current protection

Short protection

Temperature protection

Load detection

With Strong magnetic

Battery Capacity

9600mAh/3.6V

Charging Voltage

DC 5~24V

Charging Current

5V:2.7A MAX

12V:1.8A MAX

24V:0.9A MAX

Charging Time

2.5H（DC 12/24V at 25℃）

7H（DC 5V at 25℃）

Discharging Voltage

9.5~12.6V 1.5A MAX

Discharging Time

17.5H（160mA）

Charging Temperature

-10~45℃

Discharging Temperature

-20~60℃

Storage Temperature

-20~60℃

Waterproof Rating

IP69K

Dimension

100.5*64.5*40.7（mm）

Weight

400g
