9 inch HD vehicle quad-view trucks buses passenger cars reversing image display screen

HD146D

STONKAM 9 inch HD quad-view vehicle trucks passenger cars reversing image display screen supports 4 CH HD cameras input, multi channels spliting the screen and achieving 360° monitoring without blind angle. Drivers can intuitively monitor the driving situation around the vehicle in the driving process, reducing the possibility of blind collision, scratching and other accidents. Meanwhile, this HD vehicle monitor supports multi display modes, able to meet customers' demands for convenient and clear video monitoring!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

  • IPS screen:  HD IPS screen, high resolution, high brightness

  • Multi-display modes: Supporting 4 CH HD camera input, display mode supports single view, dual views, triplex views, quad views, trefoil view, Y view, H view, PIP view and other views

  • Mirror image function: the parameter of each CH image effect could be adjusted individually, supporting horizontal mirror image and vertical flip display

  • Wide power supply: 10-32V wide power supply input supports 12V or 24V automobile battery, reducing the troubleness of mismatching voltage and suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance

  • Reversing marking line: Able to set reversing marking line, adjusting and calibrating freely

  • Backlight adjustment: Backlight brightness supports 60-level manual adjustment and 2-level ambient light autombile adjustment

  • Touch button: Supporting capacitive touch screen; Icon menu operation; Supporting some gestures

  • Multiple languages: Multi languages available, able to be customized according to users' requirements

  • Multiple formats: Multiple video formats available to cameras: 1080P30/1080P25/720P30/720P25/PAL/NTSC

  • Automatic scan: Automatic scan available, scanning channel and scanning time can be choosed

  • Triggering function: 5 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely

  • Other functions: Easy to install and operate, with innovative functions

Resolution

1024x3(RGB)x600

Brightness

650 cd/m²

Contrast

800:1

Viewing Angle

U: 85°/ D: 85°, R/L: 85°

Aspect Ratio

16:9

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

Power Consumption

Max.15W without cameras

Power for Cameras

Max. 4×600mA, 12V

Power Supply

10V-32V

Video Input

4 CH

Audio Input

4 CH







Too many blind spots when driving?

Often upset by the recurrent scratches?

Having encountered all kinds of feigned accidents?

Difficult to determine who is liable for rear-end collisions?

……



To solve all these problems, all you need is a set of vehicle monitoring system!

But wait,

Where to find a nice vehicle monitoring system?

How can we synchronously monitor the image of multiple cameras on just one display?

Where to find a monitor with good quality and is easy to operate?

vehicle monitor





STONKAM 9 inch HD quad-view vehicle trucks passenger cars reversing image display screen can solve all your problems!





9 inch HD IPS Screen, high resolution, high brightness

It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

Vehicles monitoring display





Real-time viewing of driving conditions, assisting in safe driving!

STONKAM vehicle HD monitor supports 4 CH HD cameras input, multi channels spliting the screen. Drivers can intuitively monitor the blind spots in the driving process, controllling the driving situation in real time. It greatly improves the driver's field of view, able to reduce the possibility of traffic accidents.

Reversing display screen





Multi-display modes

It supports single view, dual views, triplex views, quad views, trefoil view, Y view, H view, PIP view and other views. Multi-display modes could switch automatically, meeting your various monitoring needs.

Trucks reversing  display screen





Horizontal mirror image and vertical flip display available

The display supports mirrorring, vertical flipping accounding to the users' demands, convenient for driver's viewing.

Trucks reversing image display screen





Wide power supply input and wide application for various scenarios

10-32V wide power supply input supports 12V or 24V automobile battery, adaptable to different voltages, suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance.

Automobile reversing monitor





Reversing image could be triggered automatically by hanging reverse gear, and reversing marking line can be set

Multiple functions assist in reversing, reducing hidden dangers and helping safety!

Vehicles monitoring





Backlight brightness supports 60-level manual adjustment and 2-level ambient light autombile adjustment

Under different light conditions, good display effect could be displayed, saving time and effort with automatic adjustment.

Vehicles monitoring system

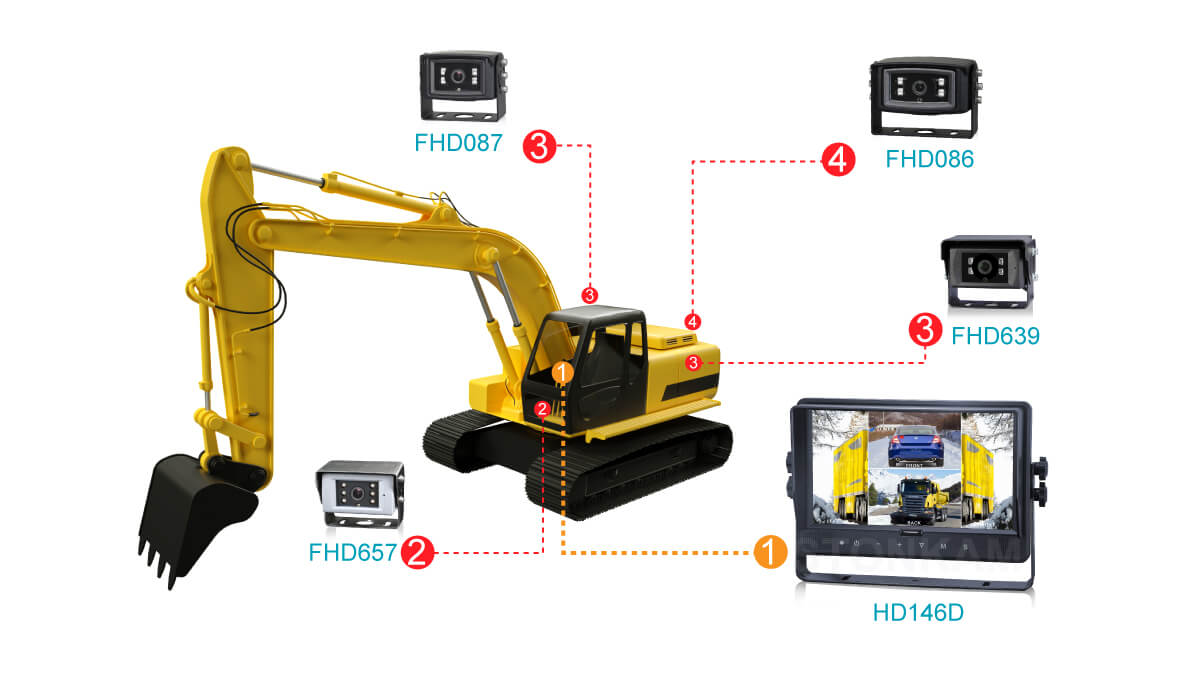

Application

STONKAM  9 inch HD quad-view vehicle trucks buses passenger cars reversing image display screen is easy to install and operate, with innovative functions, suitable for various vehicles and ships surveillance.

Vehicles monitoring system

Trucks vehicle monitoring system

Vehicle monitor
