2-CH HD Image Split Control Box

HMU317

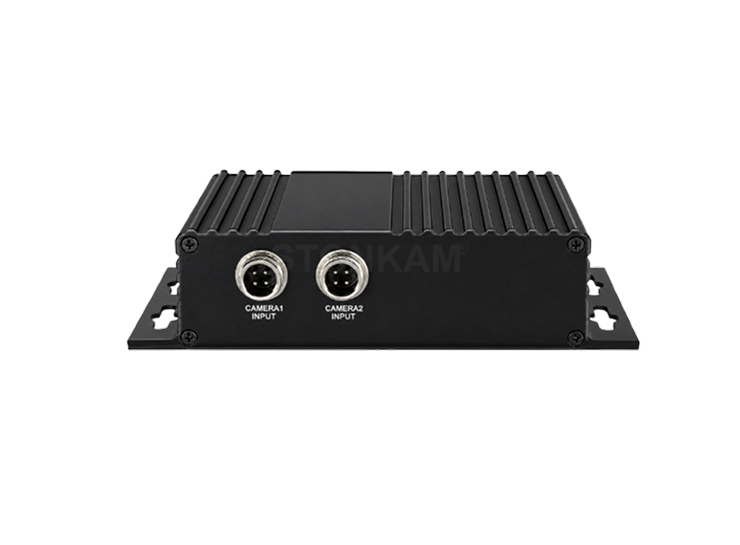

STONKAM® Vehicle 2-CH HD Image Split Control Box supports two HD camera inputs. Working with 1×monitor, 2×cameras, the system supports display of single or split view, enabling the driver to better get the situation around the vehicle, so as to reduce the risks of accidents and guarantee the driving safety!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 2 HD camera inputs(1080P@30fps / 1080P@25fps / 720P@30fps / 720P@25fps)
Video formats available: PAL / NTSC
Support 1×HD video output; the output system is consistent with the input system
Single/split-view display modes selectable
Both cameras support turning images vertically or to mirror image
3 trigger inputs to trigger correspondent channels to be displayed in full screen
Short circuit protection detection
Wide voltage input: 10-32V
Easy installation; convenient operation

Support multiple input systems and resolution systems

Compatible with multiple HD cameras and monitors!

Professional split box

Real-time display of single or split view; display modes selectable

Color split box

Product details

Split-view monitor

1	Power	4	Video out
2	Power indicator	5	Camera 1 input
3	Button	6	Camera 2 input

Applications

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 2 HD camera inputs(1080P@30fps / 1080P@25fps / 720P@30fps / 720P@25fps)

Video formats available: PAL / NTSC

Support 1×HD video output; the output system is consistent with the input system

Single/split-view display modes selectable

Both cameras support turning images vertically or to mirror image

3 trigger inputs to trigger correspondent channels to be displayed in full screen

Short circuit protection detection

Wide voltage input: 10-32V

Easy installation; convenient operation

Support multiple input systems and resolution systems

Compatible with multiple HD cameras and monitors!

Product details

1

Power

4

Video out

2

Power indicator

5

Camera 1 input

3

Button

6

Camera 2 input
