Vehicle Backup & Side View Waterproof Camera

Vehicle Backup & Side View Waterproof Camera

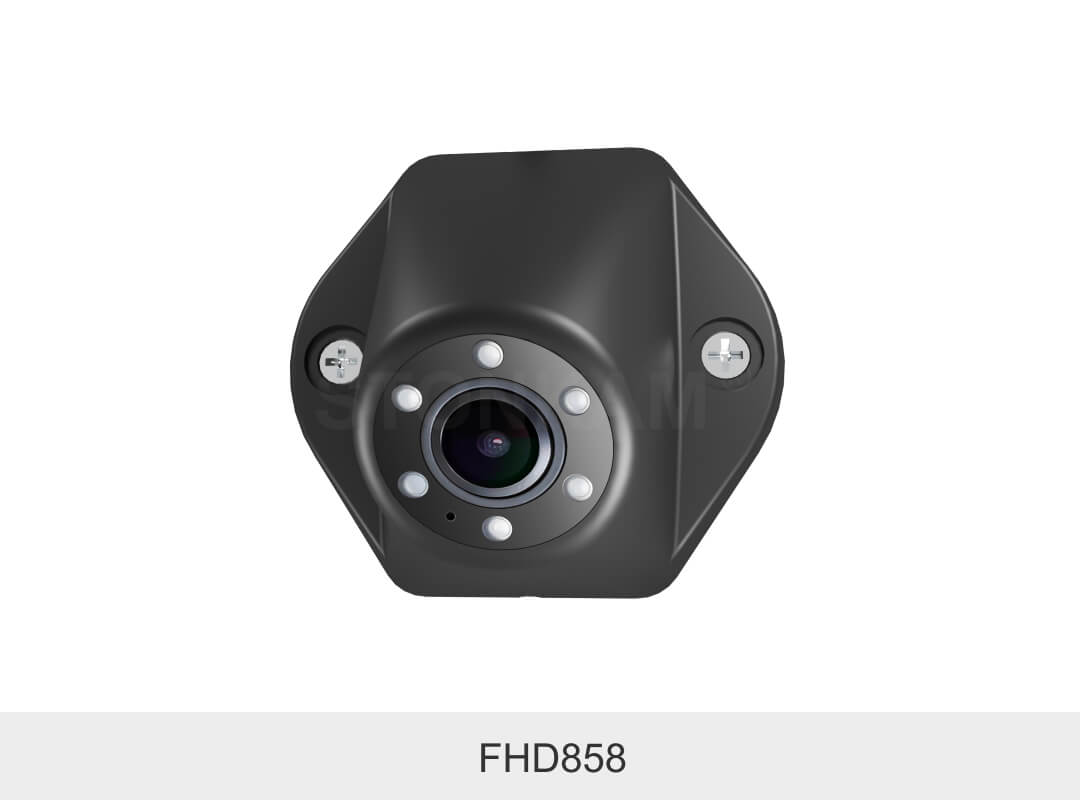

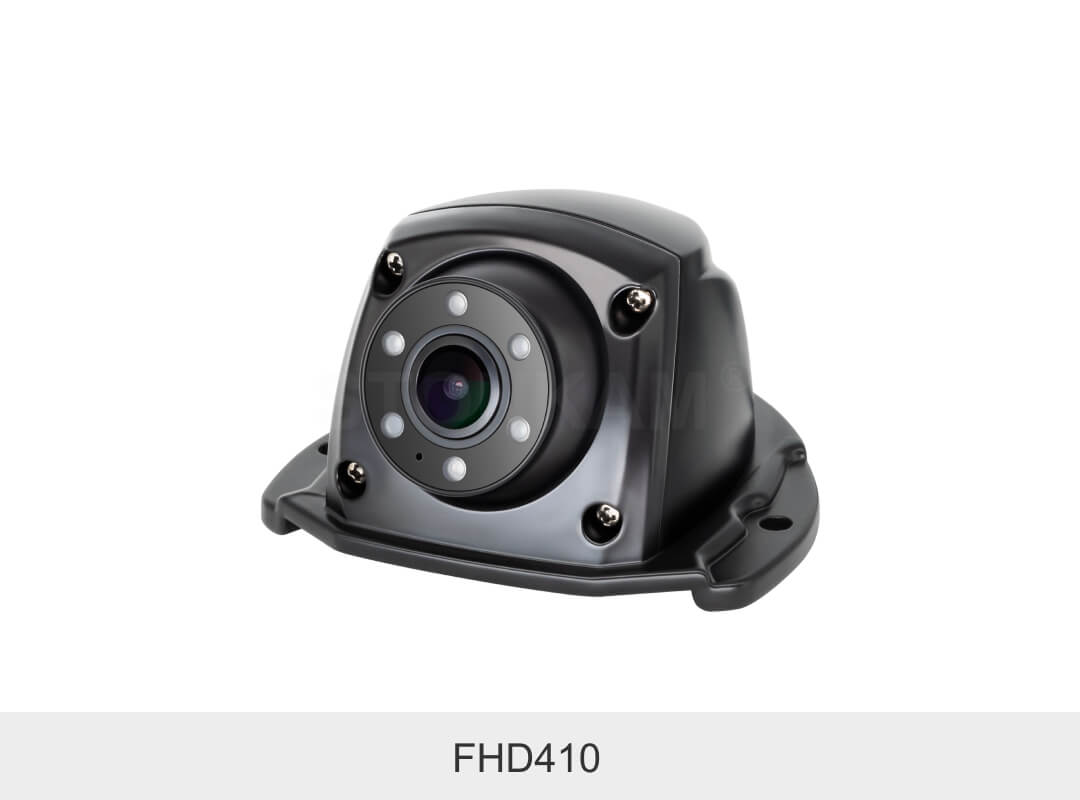

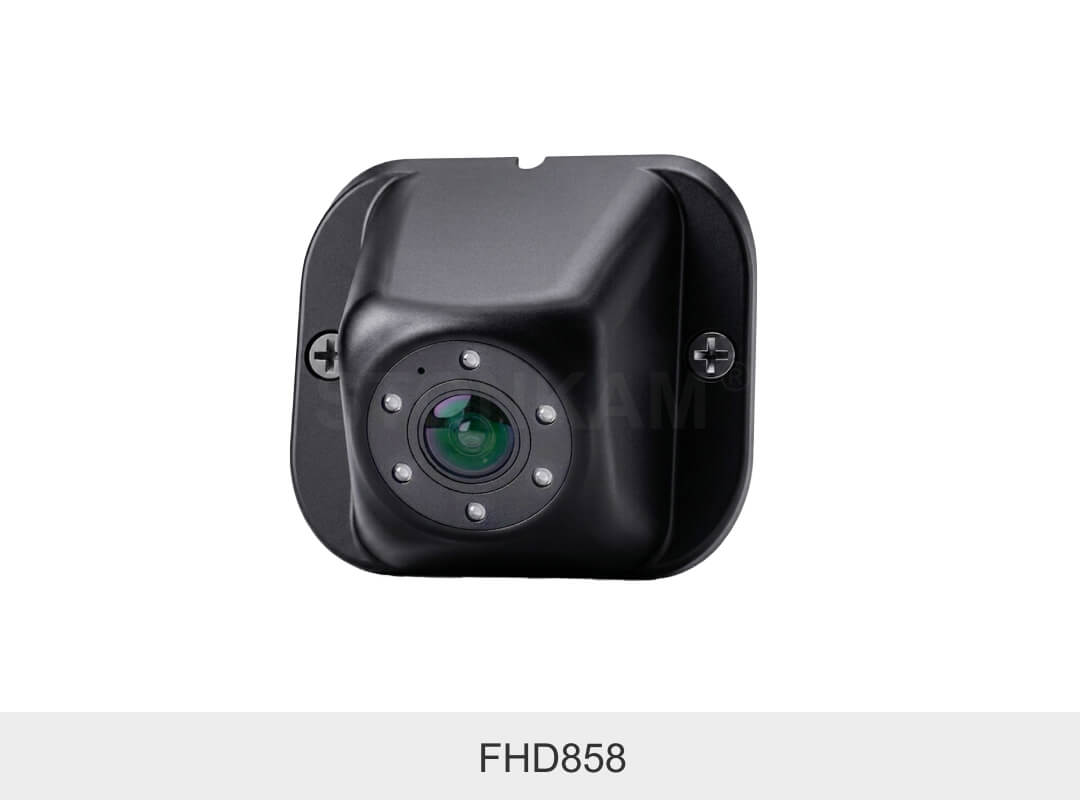

FHD858, FHD410

The STONKAM vehicle camera is designed to automotive-grade standards for reliable performance. It delivers clear and stable imaging for construction machinery, agricultural equipment, commercial vehicles, and special-purpose vehicles in harsh environments.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Image Device	1/2.8" CMOS
Frame Rate	25 / 30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.9 μm x 2.9 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
Dynamic range	>100dB
White Balance	Auto
Electronic Shutter	1/30 (1/25) ~ 1/50,000 Seconds
BLC	Auto
Operating Temperature	-40℃ ~ 85℃, RH95% MAX
Storage Temperature	-45℃ ~ 90℃, RH95% MAX
Power Supply	DC10V~32V
Waterproof Rating	IP69K
Viewing Angle	200°/180°/170°/150°/130°/120°/110°/100°/70°/60°/35°/25°
Audio	Optional
Minimum Illumination	0 Lux
Night Vision Distance	8~10m
Image Mode	Mir or Nor

STONKAM vehicle cameras are engineered and validated to automotive-grade standards, featuring wide temperature range, vibration resistance, and IP69K-rated protection, ensuring reliable performance in harsh environments and making them ideal for reversing systems, blind-spot monitoring, and operational assistance in construction machinery, agricultural equipment, commercial vehicles, special-purpose vehicles, and more.

Automotive-grade camera

High-Reliability Design

Designed and validated to automotive-grade standards, STONKAM cameras feature wide temperature tolerance, vibration resistance, and IP69K-rated protection, ensuring reliable performance and long-term durability in harsh environments.

back up camera

Scalable Mass Production & Deployment

STONKAM is certified to IATF 16949, ISO 26262 ASIL-D, ISO 21434. With proven mass-production experience in automotive displays and an automotive-grade manufacturing system, we ensure stable large-scale delivery and long-term supply reliability.

Automotive-grade camera

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Image Device

1/2.8" CMOS

Frame Rate

25 / 30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.9 μm x 2.9 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Dynamic range

>100dB

White Balance

Auto

Electronic Shutter

1/30 (1/25) ~ 1/50,000 Seconds

BLC

Auto

Operating Temperature

-40℃ ~ 85℃, RH95% MAX

Storage Temperature

-45℃ ~ 90℃, RH95% MAX

Power Supply

DC10V~32V

Waterproof Rating

IP69K

Viewing Angle

200°/180°/170°/150°/130°/120°/110°/100°/70°/60°/35°/25°

Audio

Optional

Minimum Illumination

0 Lux

Night Vision Distance

8~10m

Image Mode

Mir or Nor

High-Reliability Design

Designed and validated to automotive-grade standards, STONKAM cameras feature wide temperature tolerance, vibration resistance, and IP69K-rated protection, ensuring reliable performance and long-term durability in harsh environments.

Scalable Mass Production & Deployment

STONKAM is certified to IATF 16949, ISO 26262 ASIL-D, ISO 21434. With proven mass-production experience in automotive displays and an automotive-grade manufacturing system, we ensure stable large-scale delivery and long-term supply reliability.
