6-Channel HD Vehicle Video Multiplexer

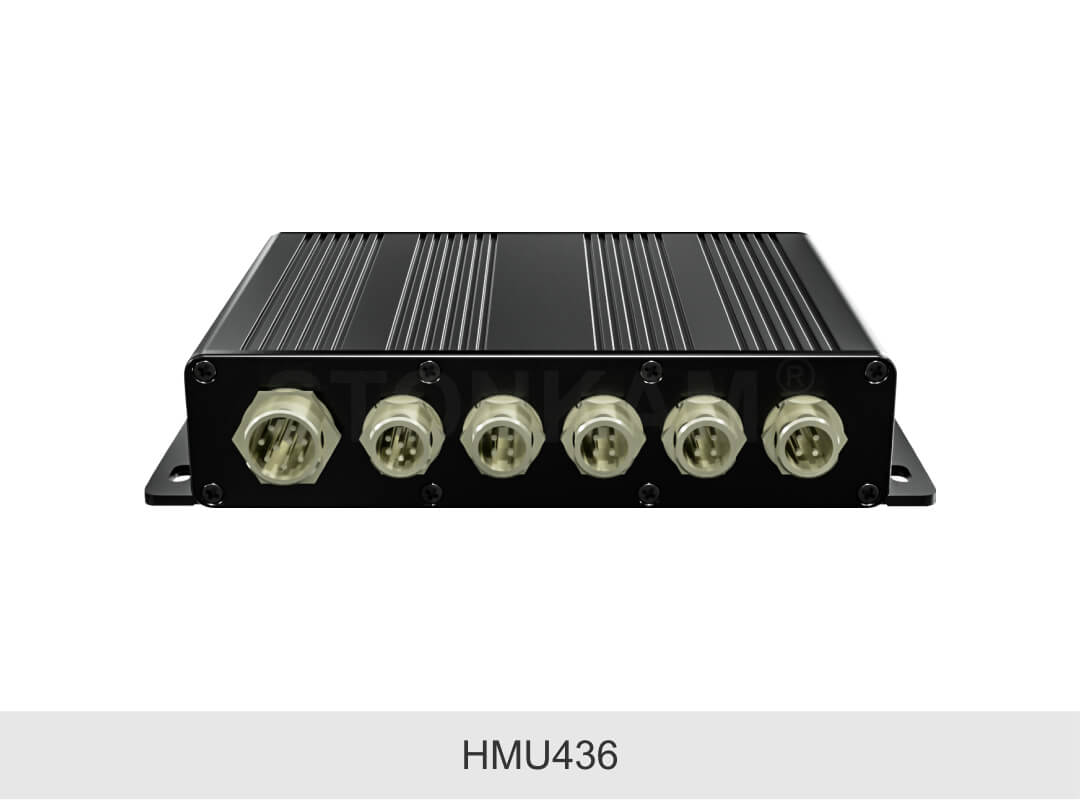

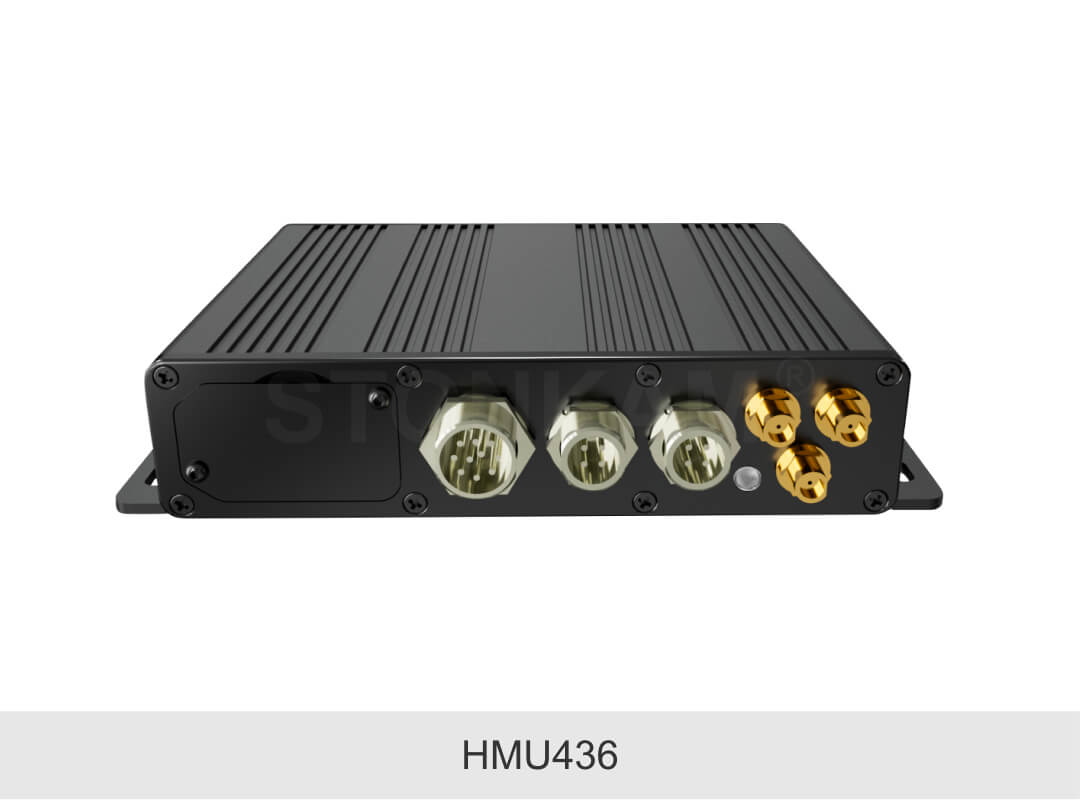

HMU436

The STONKAM 6-Channel HD Vehicle Video Multiplexer supports 6-channel camera input, multiple camera resolutions, and video output formats. With features like multi-screen display, reversing guidelines, and image flipping, it helps drivers monitor surroundings in real time, reducing accidents and enhancing driving safety.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

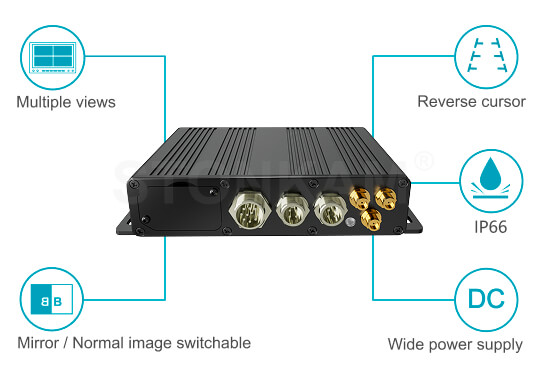

Features

【Support multiple resolutions】Six-channel camera resolution support: 1080P25/1080P30/720P25/720P30/PAL/NTSC
【Multiple video formats available】 AHD(1080P25/1080P30/720P25/720P30)、CVBS(PAL/NTSC) output
【IP66 Waterproof】IP66 waterproof and dustproof control box, which could be applied even if in bad weather.
【Multi image real-time display】Single, dual, quad, 5-split and 6-split view display modes available
【Wide power supply】10 - 32V ; Support 12V or 24V automobile battery, suitable for a variety of scenarios
【Images flipping function】 Images can be set to flip horizontally or vertically.
【Automatic scan】Support auto scanning, with scanning sequence and duration editable.Scanning time is adjustable from 1 to 1—60S.
【Reverse cursor】Optional cursor switch, position can be adjusted up and down, left and right.
【Support 12 languages】Language can be customized according to users' needs.
【Triggering function】Six trigger wires, with trigger display image, delay and priority adjustable
【Power supply function】Provide 12V power supply to the camera, which is convenient for users to install.
【Remote control】Adopt remote control, and support remote control extension cable.
【Menulock】It has three levels of menulocks, which can support some or all keys not responding, and can limit the driver's setting operation and prevent accidental touch.

Dimension of Multiplexer Box

164 * 110.6 * 33.5 mm

Power Supply

DC:10-32V

Operating Temperature

-20℃~70℃

Storage Temperature

-30℃~80℃

Power Consumption

Max. 6W

Anti-vibration

ISO 16750-3(2.13G)





Have you ever been disturbed by following questions?
Installed multi-channel cameras but can’t display multiple blind spots at once, increasing driving risks?
Distracted by frequent screen switching during high-risk maneuvers like reversing, turning and  operating, leaving safety hazards?
How can you fully maximize the value from your multi-channel cameras?
......









STONKAM 6-Channel HD Vehicle Video Multiplexer upgrades your display, effortlessly showing all feeds at once!





To help check the driving conditions around the vehicle in real time,which is conducive to safe driving

It supports camera input and video output with multiple resolution for its strong compatibility, and can be used with a variety of HD cameras and monitors to achieve multi-screen real-time display effect!

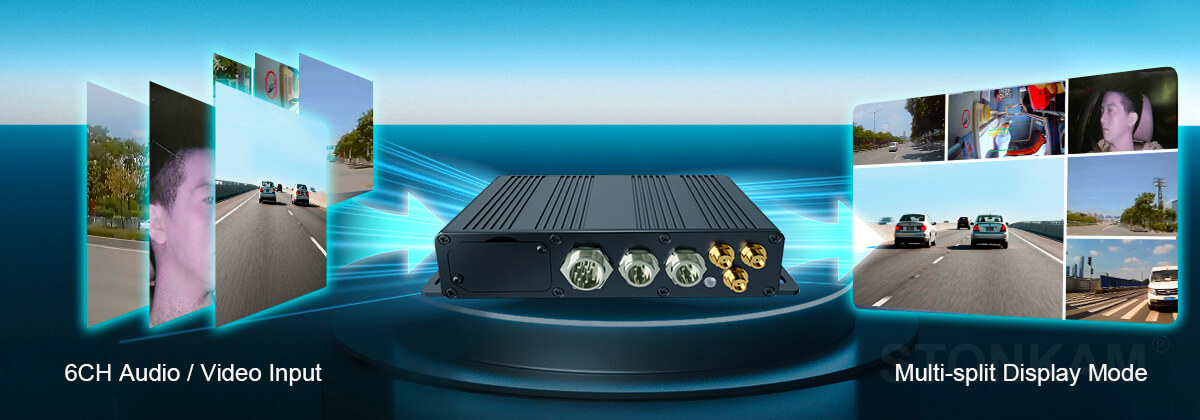

Vehicle-mounted image processor-multiplexer





Multi-display modes

HD vehicle-mounted  Image Processor-multiplexer

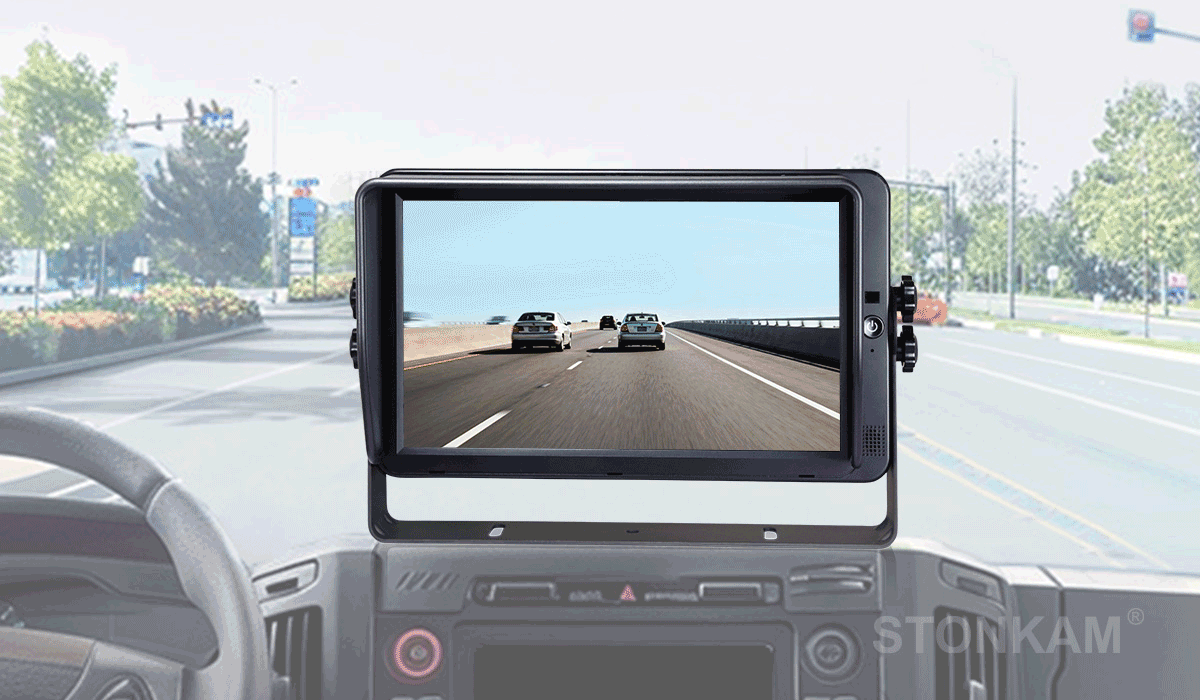

Horizontal mirror image and vertical flip display available

The display supports mirrorring, vertical flipping accounding to the users' demands, convenient for driver's viewing.

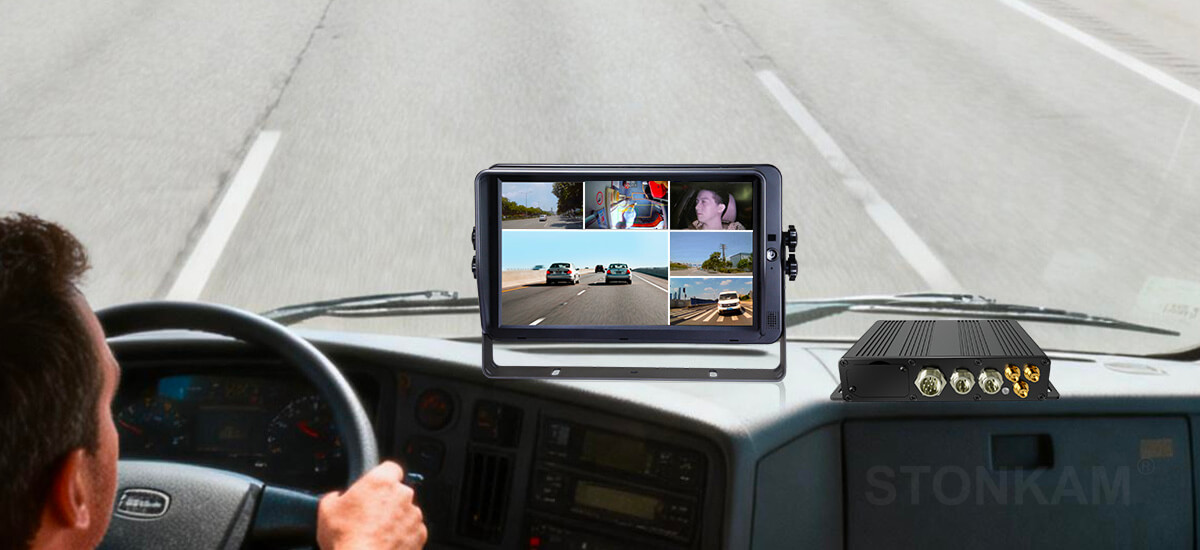

Multifunctional vehicle-mounted image Processor-multiplexer





Wide power supply input and wide application for various scenarios

Support 12V or 24V automobile battery, suitable for a variety of scenarios.

HD vehicle-mounted  Image Processor-multiplexer
