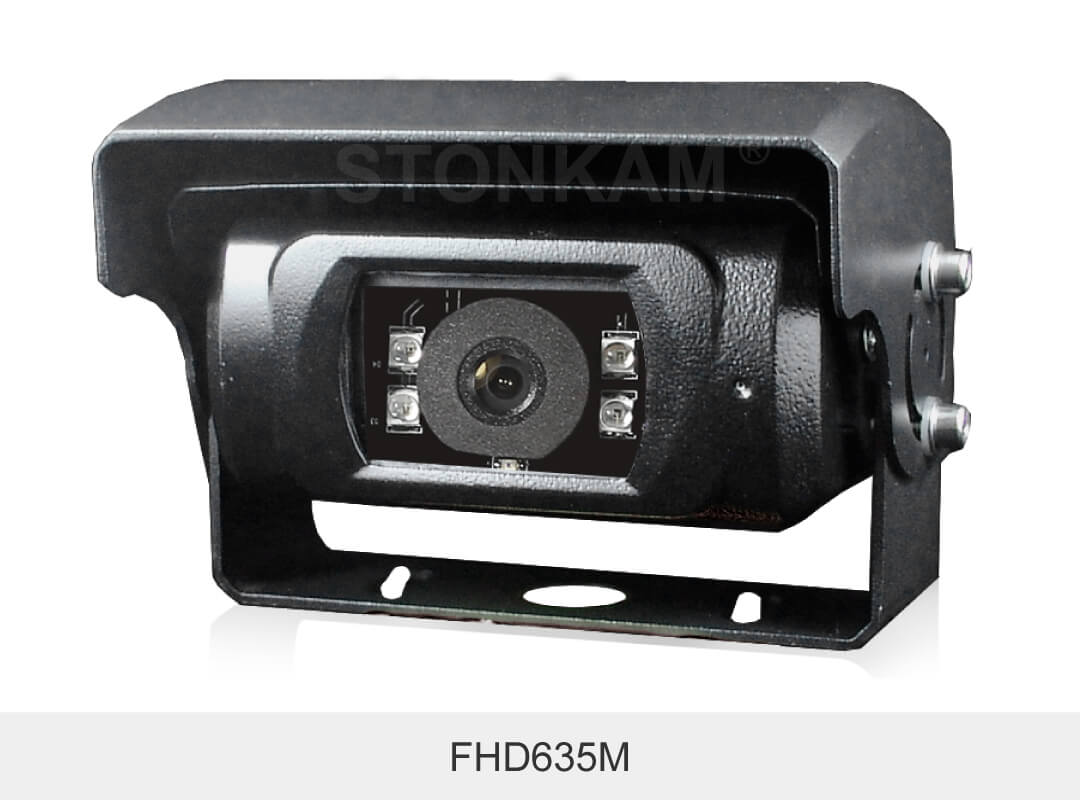

1080P Waterproof Truck Reverse Camera with Auto Shutter

FHD635M

STONKAM® supplies the best 1080P truck backup cameras featuring high resolution, auto shutter ,IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM&OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

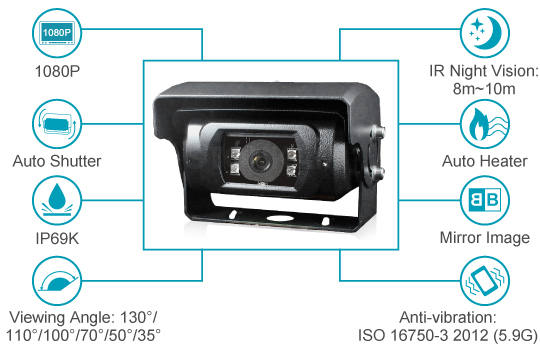

Features

  • 1080P high definition

  • IP69K waterproof

  • With auto shutter for better protection of lens, suit to use in bad environment such as sandy or heavily snowy weather

  • Wide viewing angle: 130° / 110° / 100° / 70° / 50° / 35°

  • Night vision distance: 8m ~ 10m (26.25ft~32.81ft)

  • Mirror / Normal image

  • Wide power supply: DC 12V / DC10~32V

  • Anti-vibration: ISO 16750-3 2012 (5.9G)

  • Working temperature: -20ºC ~ +70ºC

  • Auto heater optional

  • Smart-IR optional

  • 4pin interface

1080P Truck Reverse Camera with Auto Shutter (FHD-635M):

Image Device

1/2.9" CMOS

Frame Rate

25 fps / 30 fps

Effective Pixels

1920(H) x 1080(V)

Pixel Size

2.8 μm × 2.8μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Signal to Noise Ratio

Better than 52dB

White Balance

Auto

Electronic Shutter

1/25 (1/30)~1/50,000 Seconds

BLC

Auto

Operating Temp. & Humidity

 -20℃~70℃, RH 95% MAX.

Storage Temp. & Humidity

 -30℃~80℃, RH 95% MAX.
