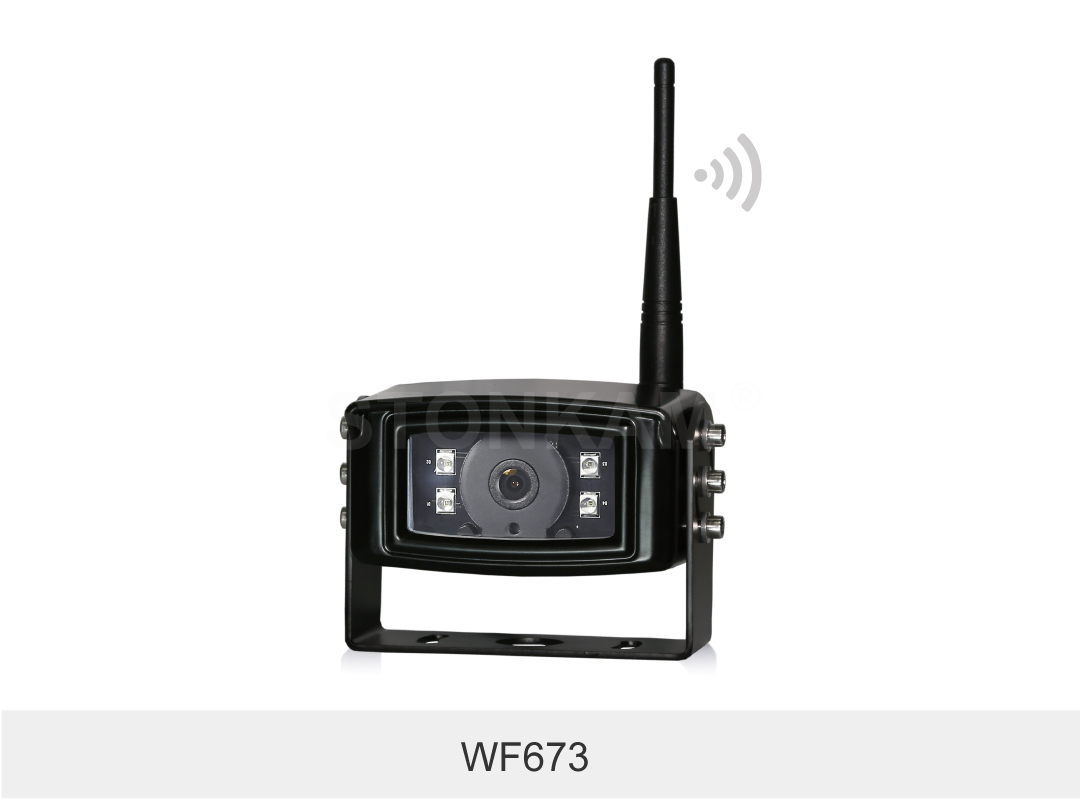

1080P WIFI Rear View Camera

WF673

STONKAM® 1080P WIFI rear view Camera is easy to install. It offers clear view, helping you to avoid blind spots and secure safety. Click to see more STONKAM® Wi-Fi System products.

Inquire Now

Leave your message and contact details, we will try to get back to you!

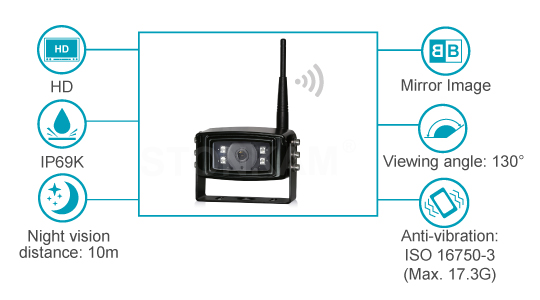

Features

1080P high definition
IP69K
Wide viewing angle: 130°
Mirror / normal image switchable
Anti-vibration: ISO 16750-3 (Max. 17.3G)
DC power: 10-32V
Working temperature: -20ºC ~ +70ºC
Operation Frequency:2.4GHz-2.4835GHz ; 5.12GHz-5.825GHz
Spread Spectrum:IEEE 802.11a/b/g/n/ac
RF Bit Rate:11Mbps

Operating Temperature	-20 ~ 70℃ RH95%MAX.
Storage Temperature	-20 ~ 70℃ RH95%MAX.
Waterproof Rating	IP69K
Image Device	1/2.9" CMOS
FPS	2~30
Effective Pixels	1920 (H) x 1080 (V)
Pixel size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Gamma Consumption	0.45
AGC	Auto
Dynamic Range	81dB
White Balance	Auto
BLC	Auto
Operation Frequency:	2.4GHz-2.4835GHz ; 5.12GHz-5.825GHz
Sensitivity @PER:	-86dBm@8%PER
Working Mode:	Infrastructure；Ad-Hoc
Spread SPECTRUM:	IEEE 802.11a/b/g/n/ac
RF Power	18dBm@11b,14dBm@11g , 13dBm@11a,13dBm@11n,11dBm@11ac
Delay:	200ms
Transmitting Speed:	11Mbps
Minimum Illumination	0Lux
The Transmit Distance:	60m
Night vision distance	8 ~10m
Power Supply	DC10V~32V
Audio	Yes
Viewing Angle	130°
IR-Cut	Yes

Why to install WiFi Camera?

Do you know how to wiring?

How to improve the efficiency of setting up a safety system for the vehicle?

It is easier to remove the camera from a vehicle to another.

......

STONKAM® 1080P WiFi Rear View Camera can help you solve your worries!

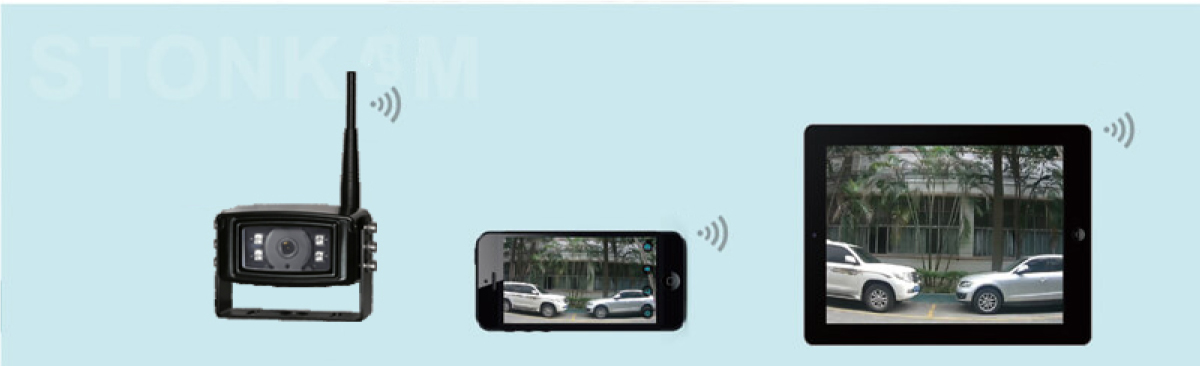

Monitoring on Mobile/ Tablet

Easily watch the real-time video of your vehicle via WiFi connection. Support both phone and tablet of Android and iOS system. No need for additional monitor.

WIFI back view camera

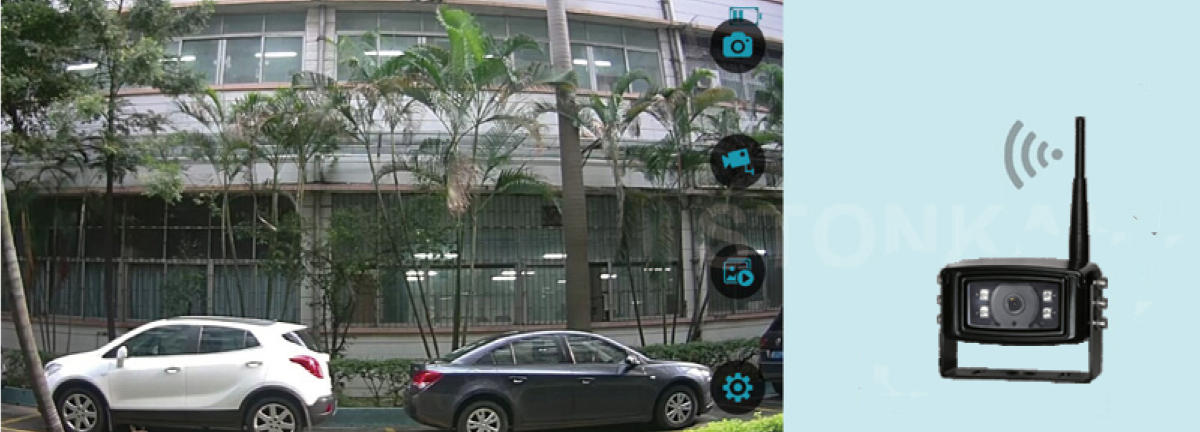

Capture High Definition Screenshots through Mobile APP

WIFI camera

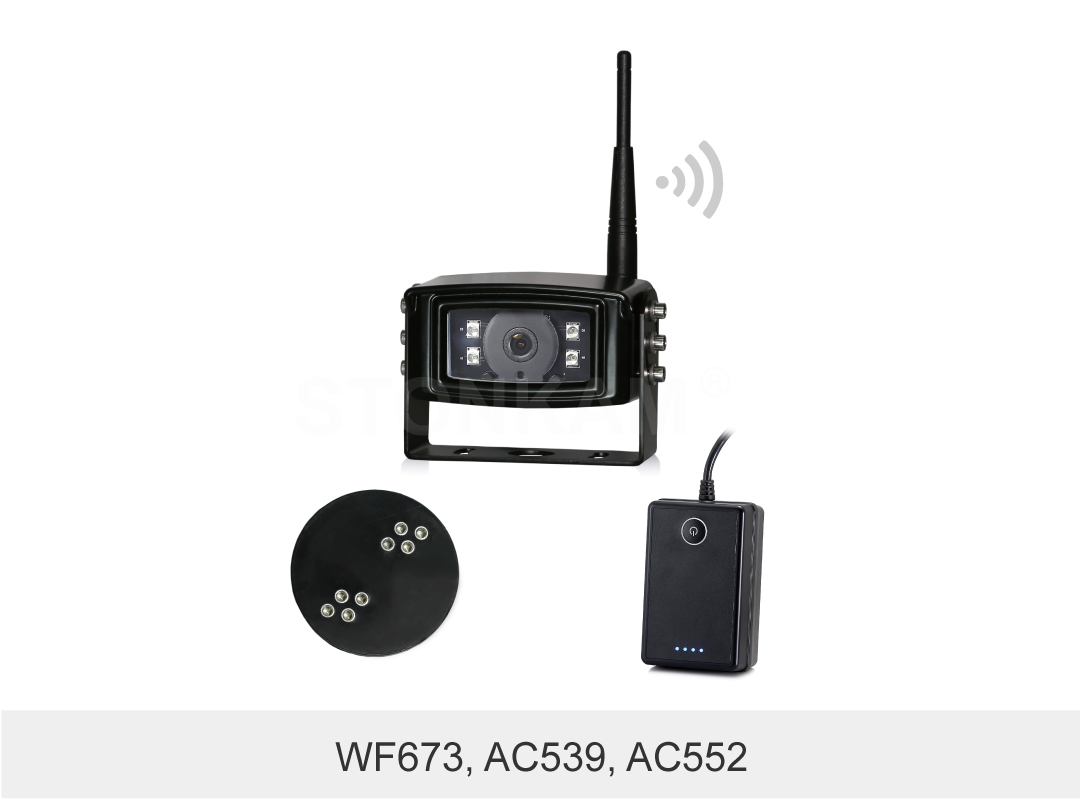

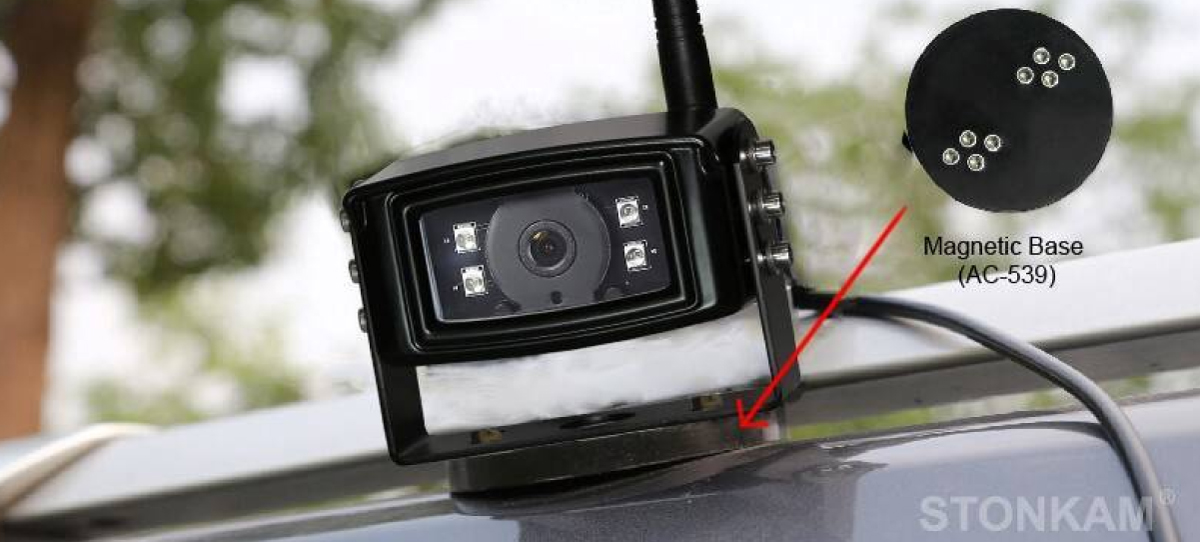

Can work with magnetic base for labor-saving installation

wireless rear view camera

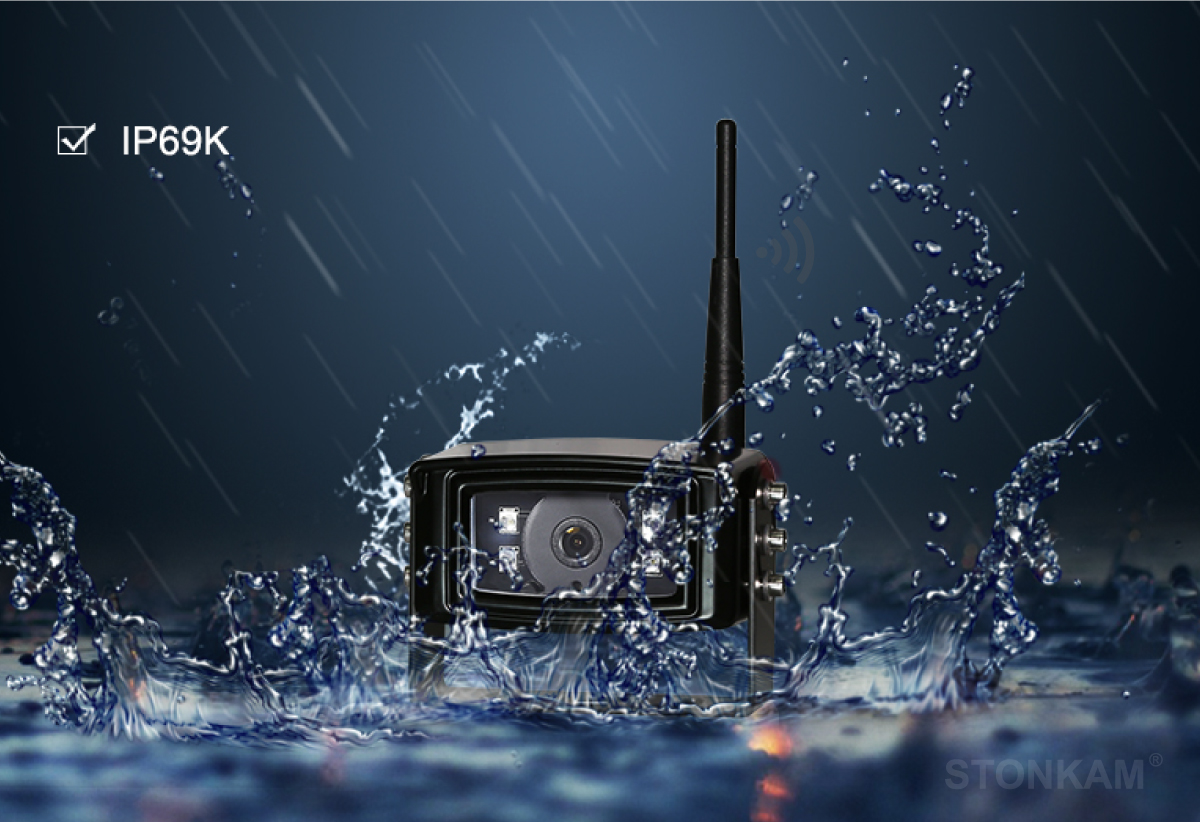

IP69K Waterproof and dustproof+ Metal Body = Heavy Duty Camera

1080p WIFI camera

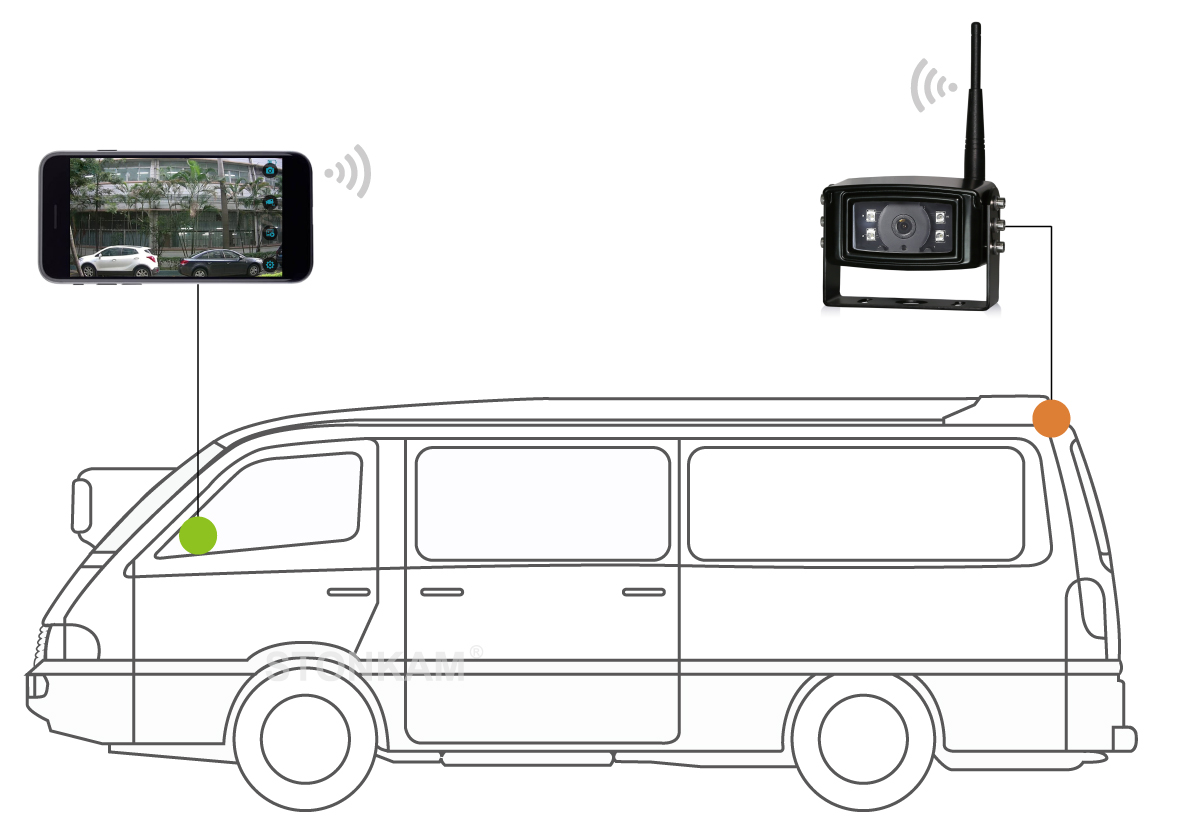

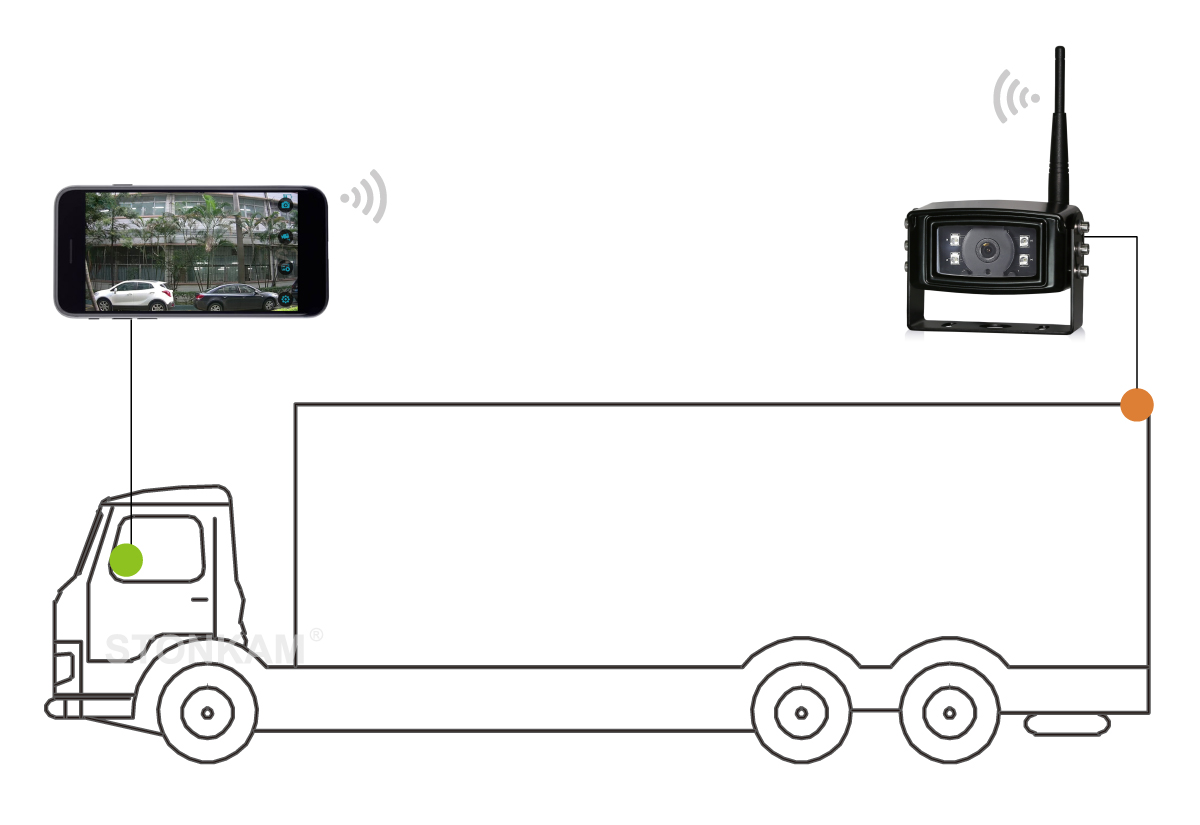

Applications

STONKAM® 1080P 2.4GHz WIFI Rear View Camera can be applied to various vehicles by easy installation without running long cables. It supports both Android and iPhone.

WIFI safety camera
1080P WIFI back view camera
