1080P 24GHz Millimeter Wave Radar Detection System
(Model:BS-A21, HD-261D, FHD-639)
1080P 24GHz Millimeter Wave Radar Detection System
Features

1080P radar detection system & blind spot monitoring system from STONKAM adopts 24GHz millimeter-wave radar technology to make it all-weather. The powerful system supports BSD (Blind Spot Detection), LCA (Lane Change Assistant), RCTA (Rear Cross Traffic Alert). It has been widely applied to heavy-duty commercial vehicles. More radar alarm systems are available here.


  • The millimeter wave radar detection system concludes a 1080P camera (FHD-639) and a monitor (HD-261)
  • Support high definition 1080P input and output
  • 24GHz Millimeter-wave Radar technology
  • Equipped with BSD (Blind Spot Detection), LCA (Lane Change Assistant), RCTA (Rear Cross Traffic Alert)
  • AHD Image alarm overlapping
  • Dual LED lights warning, buzzer warning
  • All-weather operations; work 24 hours

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system

Specification

Frequency 24GHz
Power Supply 10 to 32V DC
Detection Range 0.5~25m
Antenna Beam Angle 60° (Horizontal), 16° (Vertical)
Trigger Input ×3  Left Trigger, Right Trigger, Reverse Trigger
Alarm Output ×2 LED Alarm output x2
buzzer alarm output
BSD/LCA startup speed

> 20km / h

BSD detection range

3 x 7m

BSD speed measurement
-36〜80km / h
LCA detection distance 25m; TTC <2.5s

RCTA detection distance

15m
Video format 720P 25fps/30fps, 1080P 25fps/30fps
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
IP Protection IP67 (sensor),IP66(Control Box)
Vibration Rating 5.9G
Dimensions Sensor: 104.3(W) ×80.5(H) ×25.4(D) mm
Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm
Weight 219.9Grams (sensor),  240Grams (control box)
Mounting Two (4.5mm) diameter mounting holes (sensor)
Four (6mm) diameter mounting holes (control box)



Why do you need to install  blind spot detection system?
Is it useful?
The answer is certainly yes! With electronics radar detectors for obstacle detection/ reversing/ parking, the following problems can all be solved.


  • How to avoid collision and crash when parking / starting in a small garage?
  • How to deal with the blind spot of the rear view mirror where vehicles cannot be seen before change the lane?
  • What to do in heavy rains, fog and dark night lights when visibility is limited?
  • How to initiatively be alerted to the danger when reversing or parking? ......

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system



Unignorable Vehicle Blind Spots

Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system

It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system

Area A, B, C: Half blind area

Severity of danger depends on the vehicle size.

Area D: Full blind area

Beyond the sight of the driver and 3 rear view mirrors.

Area E: Full blind area

Pillar A near the windshield hinders the vision, which creates the blind spots.



Do not forget! Trucks have blind spots.

Due to their size and length, trucks have larger blind spots than the average cars. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.

To Be Truck Aware, Come to STONKAM® Radar Detection System for A Security Solution.




STONKAM® 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system complete safeguard your driving




Radar detection system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system



Double guarantee with dual LED lights + buzzer warning

This radar detection system can provide visual and audible alert to operators to avoid potential danger and allow them to take proper actions in advance.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system



BSD (Blind Spot Detection)

Vehicle-use radar detection system & blind spot monitoring system can transmit radar detention signal to the blind spots when the car is running, radar detention signal transmission range - up to 82ft (25m) . When other vehicles are approaching the blind spots - 23ft (7m) behind the vehicle, the system will launch audio warning the driver to avoid collision.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system

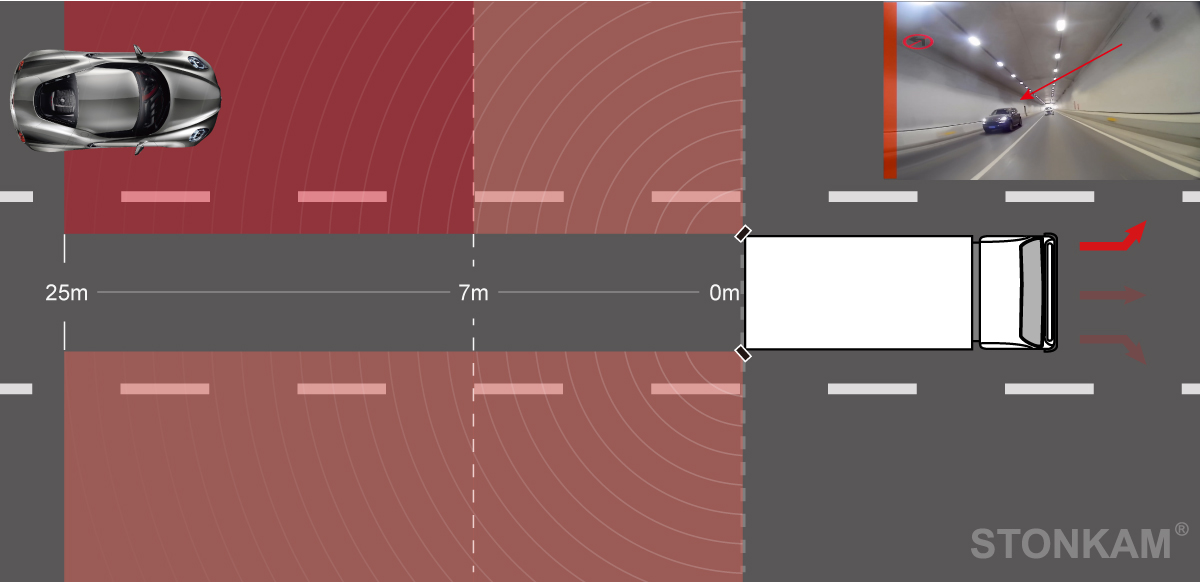

LCA (Lane Change Assistant)

When cars or pedestrians are approaching the detention area - 23~82ft (7~25m) behind the vehicle, and TTC (Time to Collision) <2.5S, LED lights are always on. If the driver is about to change lanes, the blind spot monitoring system will launch audio warning and flickering LED lights to warn the driver to avoid accidents caused by not having noticed the cars or pedestrians.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system



RCTA (Rear Cross Traffic Alert)

RCTA will keep detecting and scanning the lateral and rear area when the driver is reversing the car. If moving objects like pedestrians, animals or motor vehicles are approaching the rear side of the car, the buzzer will make audio warning and LED lights will flicker to avoid collision, and assist safe parking.




Long detection range, high sensitivity, max detection range of 25m.

Product Video
Applications

STONKAM’s 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system is suitable for blind spot detention, lane change assistance and reversing, and it’s widely applied to all types of vehicles like buses and trucks.

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system

Connection
Accessories

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system:

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system
1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system
Camera cable (4pin)

Extension cable (4pin)

Sensor transition Cable

Dual Sensors Transition Cable

USB to UART Cable

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system
Monitor Transition Cable (4pin)

Buzzer

Plug Sealer

 Sensor Mounting Brachet (Two Sizes Optional)


LED light
