2*LTE MIMO/ GPS/ WIFI All-in-one Multiple Antenna

HOME > PRODUCTS> Accessories> Accessories

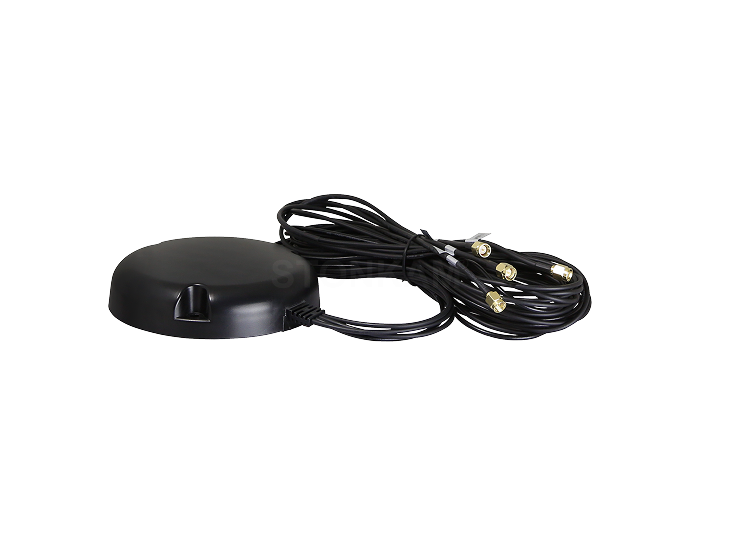

2*LTE MIMO/ GPS/ WIFI All-in-one Multiple Antenna

2*LTE MIMO/ GPS/ WIFI All-in-one Multiple Antenna

AC564

IP69K Waterproof LTE MIMO & GPS & WIFI All-in-one Multiple Antenna.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

All-in-one multiple antenna, including 2*LTE MIMO & GPS & WIFI
WIFI double band 2.4GHz / 5GHz
IP69K Waterproof
SMA Male connecter type with 3m (9.84ft) cable length
3M adhesive and fastened by three self-tapping screws

2 LTE MIMO antennas
Operating Frequency	700~960Mhz/1710~2690Mhz
Peak Gain	2dBi
Polarization	Linear
V.S.W.R.	≤2.0@ 1710 ~ 2700 MHz ≤2.5@ 700 ~ 960 MHz
Impedance	50Ω
GPS antenna
Center Frequency	BeiDou:1561.098MHz GPS:1575.42MHz GLONASS:1602MHz
Band Width	±3MHZ
Peak Gain	3.0dBic (Typical) @ 1575.42 MHz
V.S.W.R.	<2.0
Polarization	RHCP
Impedance	50Ω
DC Voltage	2.7-5.0V
DC Current	8 ~14 mA
LNA Gain	28±2dB
Noise Figure	1.5dB
WIFI antenna
Operating Frequency	2400~2483MHz/ 5150~5850MHz
Peak Gain	3dBi
Polarization	Linear
V.S.W.R.	≤2.0
Impedance	50Ω
Others
Material of Plastic	PC+ABS
Dimension	Dia：120mm
Cable Type	RG174H-02
Cable Length	3m
Connecter Type	SMA Male
Operating Temp. & Humidity	-40℃~85℃ RH95%MAX
Storage Temp. & Humidity	-45℃~85℃ RH95%MAX
