Intelligent 4CH HD MDVR All-in-one Device

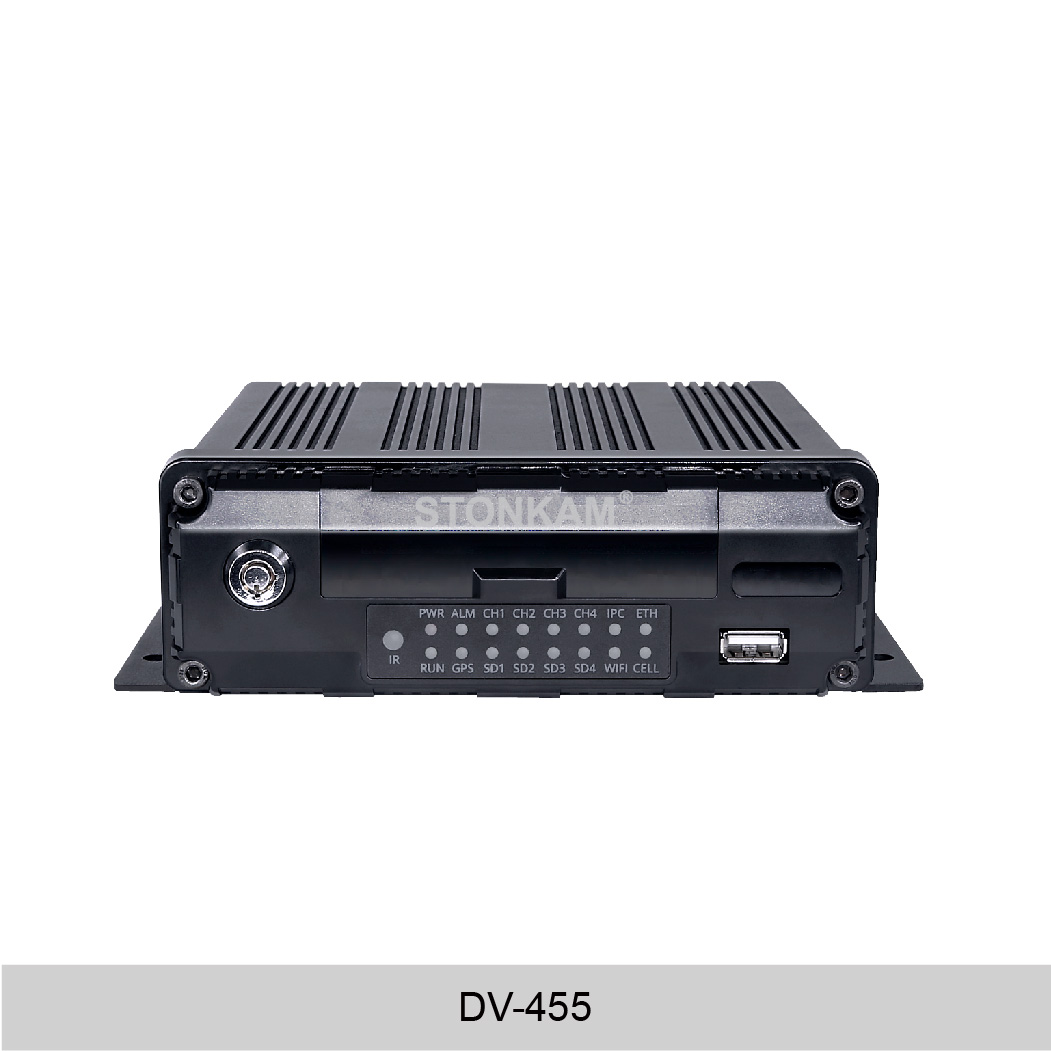

(Model:DV455)
Intelligent 4CH HD MDVR All-in-one Device
Features

Intelligent 4CH HD MDVR All-in-one Device adopts H.264/H.265 compression technology and supports real-time remote monitoring, which makes fleet management more efficient. Thanks to its multi-core processor and neural networks inference engine, the intelligent MDVR is able to integrate ADAS, DMS, and BSD algorithm in one device and provide various systems featured with different driving assistance functions. It can be combined with ADAS and DMS function, blind spot monitoring function, or 360 degree around view function, which allows the driver to have a safer driving without spending extra time and money for separate installation.Click to view more Intelligent HD MDVR.



  • Integrated with DMS and ADAS algorithm, the intelligent MDVR has recognition, warning, recording and remote reporting functions to improve driving safety in fleet management.
  • Integrated with BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots.
  • GPS tracking adopts adaptive sparse algorithm and supports offline upload.
  • Multiple trigger recording modes with 15 seconds pre-recording function: motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS/ADAS/BSD warning trigger.
  • Support3G/4G/ WIFI/ GPS tracking; can achieve real-time remote monitoring on iOS, Android and Windows client
  • With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration on mobile through WebUI.
  • Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
  • Support HD touch screen control and IR Remote Control. Flat interactive interface makes operation easy.
  • Support H.264/H.265 Encode, improve storage and make better use of wireless network traffic.

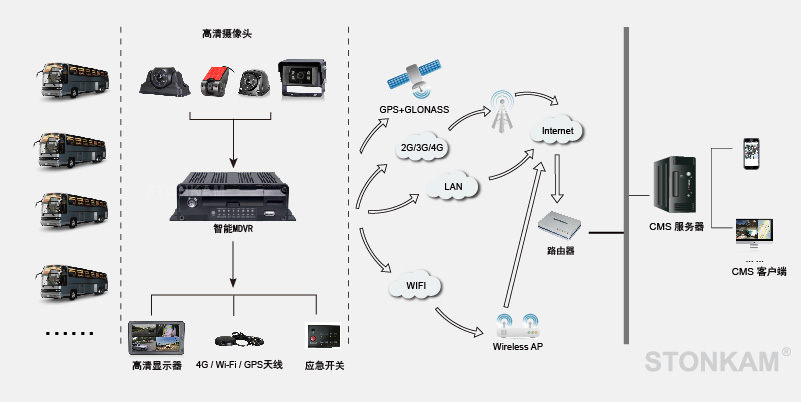

AI HD MDVR integrated system



Specification

System

Operating system

Linux

Operating interface

Graphical menu operation interface(OSD)

Video permission

Administrator & user setting

Video

Video input

Max 4ch 1080P analog high definition

Video output

Support CVBS,VGA and AHD output

Video display

1、2、3、4

Compression

H.264/H.265

Audio

Audio input

4 channels

Audio output

1 channels

Record format

Synchronized video & audio recording

Audio compression

ADPCM

Digital processing & storage

Video resolution

4*1080P(1920*1080)

Video bit rate

64kbps~4Mbps/channel

Storage

56~2700MB/(channel*hour)

Audio bit rate

32kbps

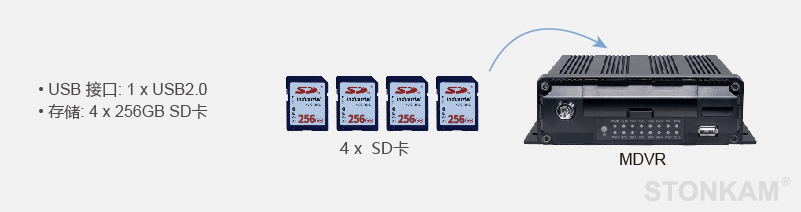

Storage

SD card * 4, max 256GB

Alarm

Alarm input

6 channels

Alarm output

2 channels, 1 buzzer

Motion detection

Adjustable high / low sensitivity

Interface for communication

RS232

1 channels

RS485

1 channels

CAN

2 channel

RJ45

1 channel

USB2.0

1 channel

Wireless

2G/3G/4G

Optional

WIFI

Standard

WIFI hotspot/AP

Available

GPS

Tracking and speed recorded

G-Sensor/Gyroscope

Available

Software

Windows client

Available

iOS client

Available

WebClient

Support windows,android,mac, ios and more

Power

Input

10~32V

Output

12V@4A

Max Power

Consumption

60W

Standby Power

Consumption

50mW

Electrical specifications

Operating temperature & humidity

-20~70 ℃<80%

Electronic Clock

Built-in clock, Calendar

Super Capacitor

Available




Why we need Intelligent Waterproof Intelligent 4CH HD MDVR All-in-one Device?


Have you ever worried about the following questions?
Where to find the perfect fleet management solution?
How to clear the blind spots in the monitoring of vehicles?
How can we quickly provide evidence when encountering accidents or thefts?



AI DVR Integrated with DMS & FCW




All your worries can be settled by STONKAM Intelligent 4CH HD MDVR All-in-one Device with multiple optional functions!



STONKAM Intelligent 4CH HD MDVR All-in-one Device can be integrated with DMS & ADAS System or BSD System for professional and reliable fleet management solution,

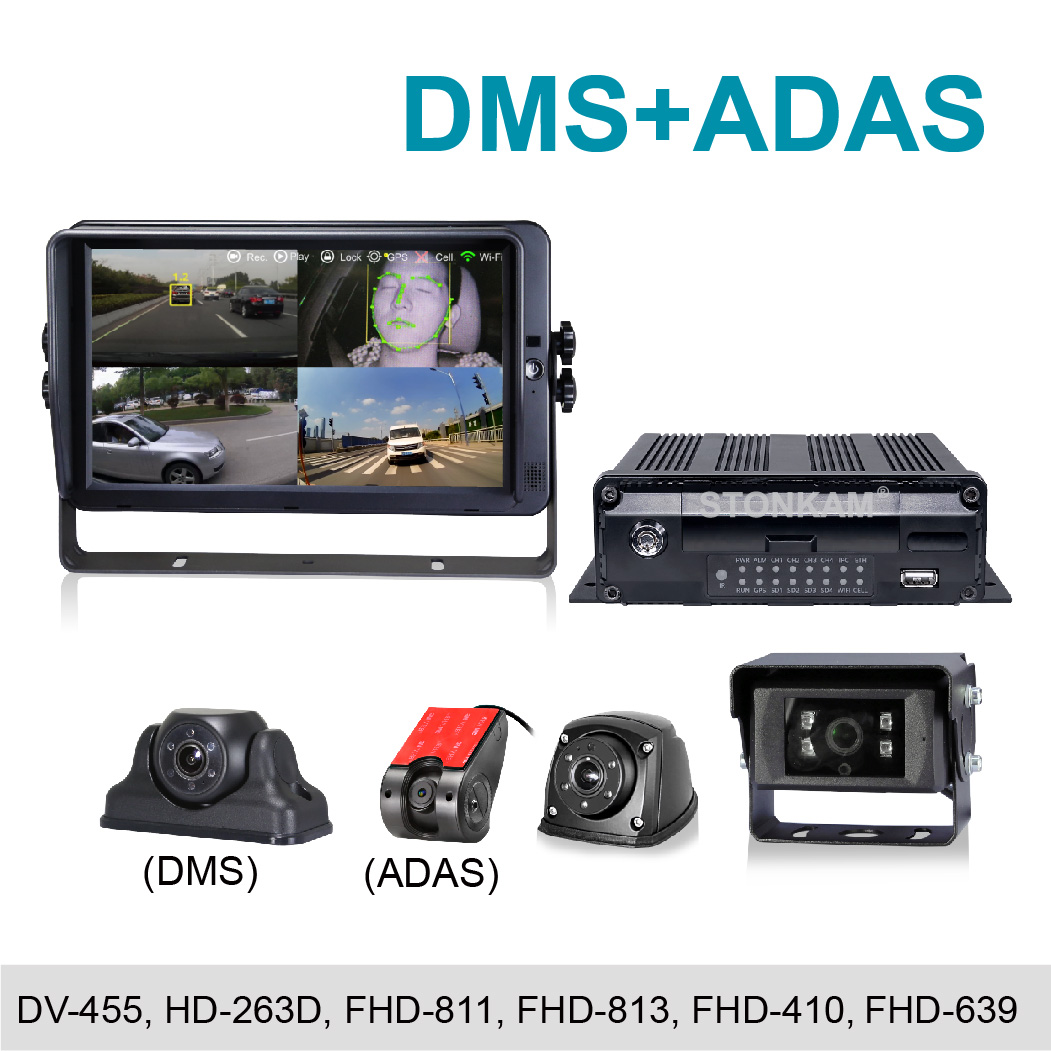

Option One: MDVR System Combined with ADAS&DMS Function

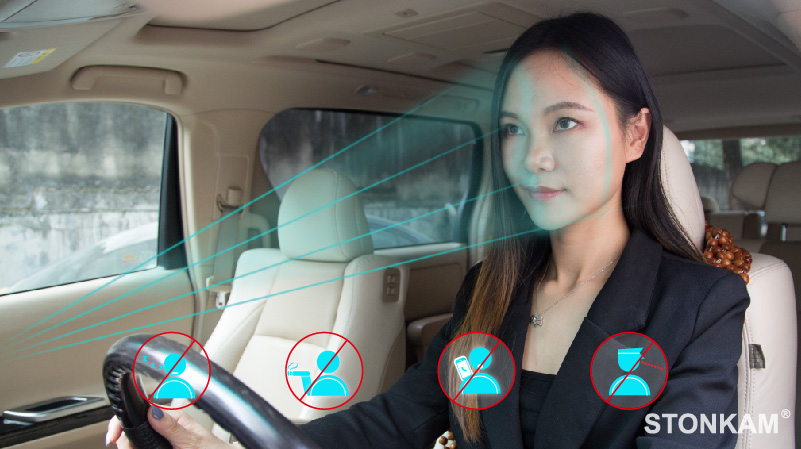

Intelligent 4CH HD MDVR All-in-one Device adopts ADAS&DMS technology to provide better performance. DMS can detect and warn against drivers’ misbehaviors like fatigue, distraction, making phone call, yawning, no driver, not wearing seat-belt or mask, as to contribute to safe driving and easy fleet management.

Intelligent 8CH HD MDVR integrated with ADAS & DMS system




ADAS functions include forward collision warning (FCW), lane departure warning (LDW), pedestrian detection (PD), preceding car starting reminder, and speed sign recognition (SSR) & over speed alarm, which can warn drivers of potential collision risks and make driving safer.

Intelligent MDVR integrated system,Intelligent 8CH HD MDVR system for driving safety

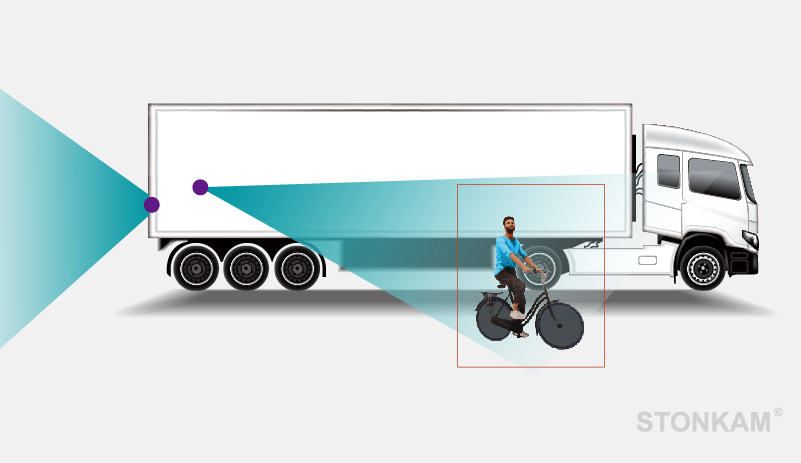

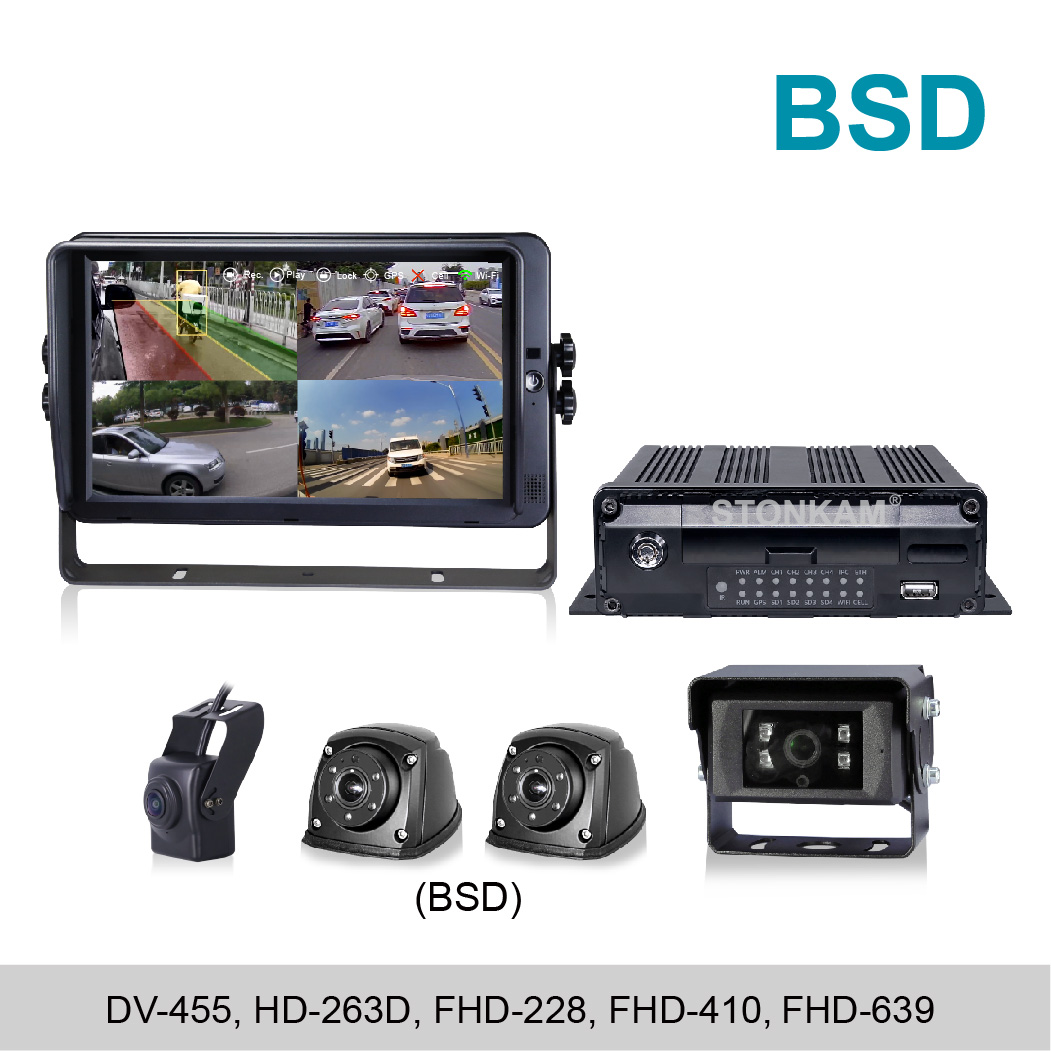

Option Two:MDVR System Combined with BSD Function

With BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots. Thus, this driving assistance device is essential for large-size vehicles like trucks, buses, construction machines, etc.

Intelligent MDVR integrated system,Intelligent 8CH HD MDVR system for driving safety




Detailed Features of STONKAM Intelligent 4CH HD MDVR All-in-one Device



GPS Vehicle Historical Track Playback

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.

HD MDVR system,AI HD MDVR integrated system,Intelligent MDVR System




Multiple Trigger Recording Modes with 15 Seconds Prerecording Function

Support motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS/ADAS/BSD warning trigger. And the 15-sec prerecording can catch the scene before the accident so as to provide evidence.

HD MDVR system,AI HD MDVR integrated system,Intelligent MDVR System

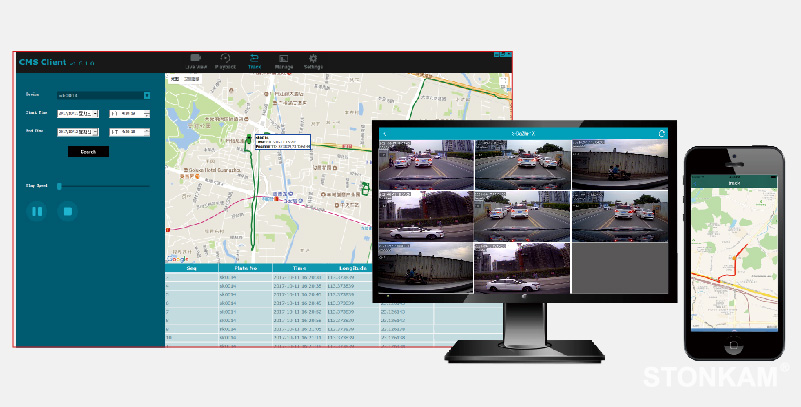

Achieve remote monitoring by DVR GPS tracking/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client and iOS APP. The mobile DVR supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.

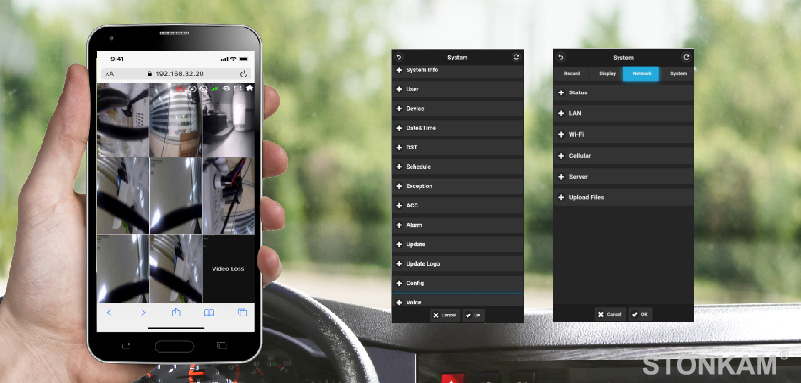

Preview with WIFI Connection

With WiFi station and AP mode; AP mode can support directly connecting to device for easy preview and configuration on mobile phone through WebUI.

HD around-view MDVR system

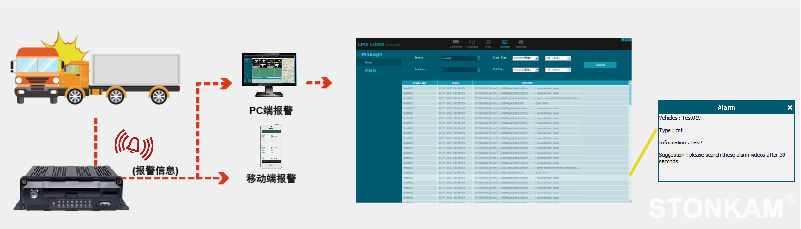

Automatically uploading, data Statistics and Reminder for Alarm Recording, Alarm Information, Log Information

Help to analyze irregular situation easily while providing vehicle tracking and traceable information.




Enhanced Performance on Interactive Interface

Support HD touch screen control and IR Remote Control. Flat interactive interface makes operation easy.

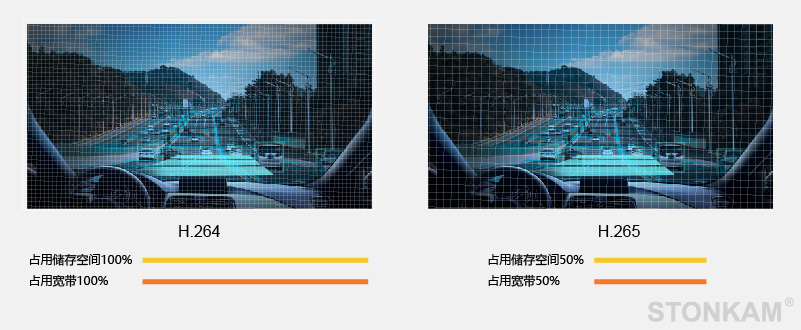

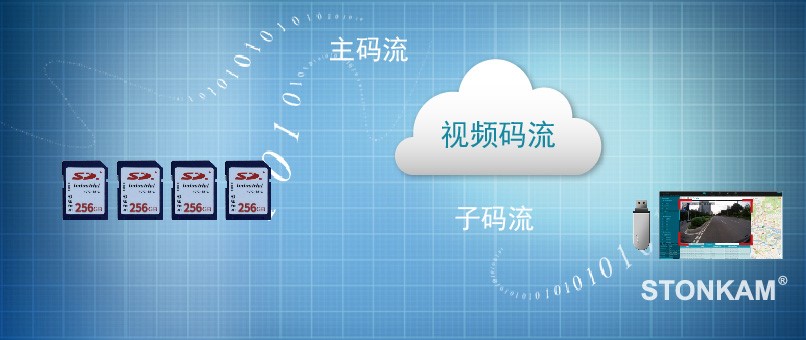

Dual-stream Design for Better Storage

Intelligent HD MDVR All-in-one Device supports H.264/H.265 encoding so as to provide more storage space and increase the use of wireless network traffic.




Keep recording all the time while event occurring on road, and support remote High Definition screenshot

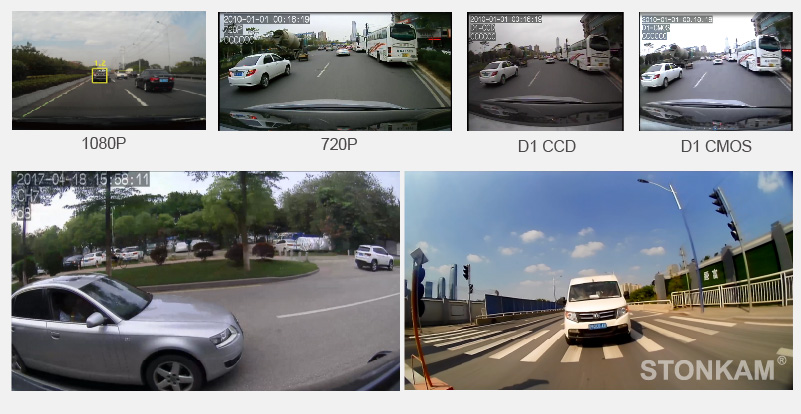

The Vehicle DVR can set video recording quality—1080P/720P/D1.

Intelligent 4CH HD MDVR All-in-one Device




Powerful Recording

This vehicle camera DVR features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.

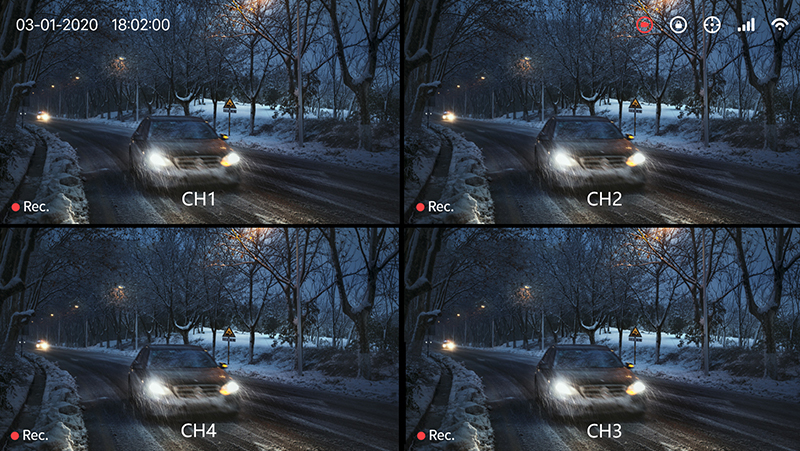

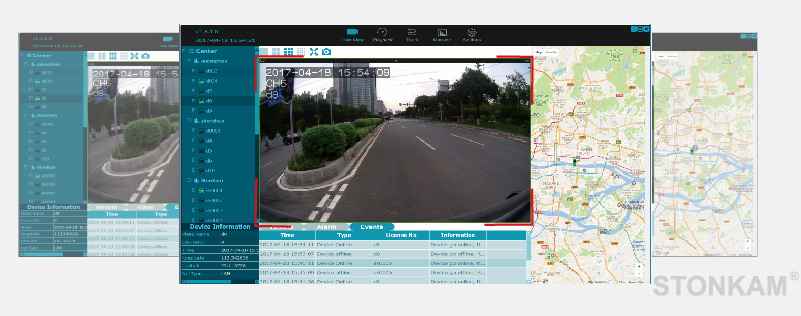

Watch Real-time Video on PC

User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

HD around-view MDVR system




Remotely Download Video

Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.





Dual-stream Storage Design for More Secure Data Protection

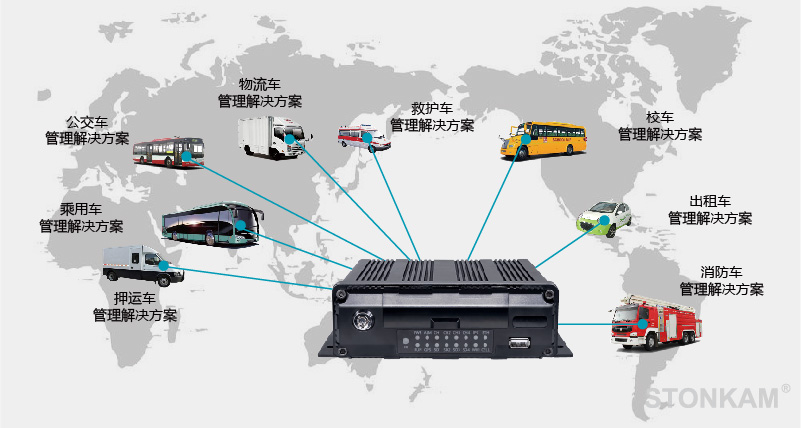

Applications

STONKAM Intelligent Waterproof 8CH HD MDVR All-in-one Device can be widely applied, providing professional and reliable fleet management solutions to buses, coaches, tourist buses and school buses. With ADAS, DMS and BSD algorithm it can provide various solutions to  fully ensure driving safety.







Accessories

4 Channel 1080P HD Mobile DVR Recorder System:





6P to 4P

conversion cable

Power Cable
Alarm & sensor connecting cable

Wi-Fi Antenna

(Optional)

3G Antenna

(Optional)



4G Antenna

(Optional)

GPS Antenna

(Optional)

All-in-one Antenna

(Optional)

Panic Button

(Optional)

4P Extension Cable

(Optional)




Remote Control
DVR Key





High Definition Quad-view Monitor:






Sun Shield

U- Support Bracket Angle Adjustment Screws

Center Mount Bracket

Extention Cable





Power Cable
IR Remote Control
