1080P 24GHz Radar Detection System

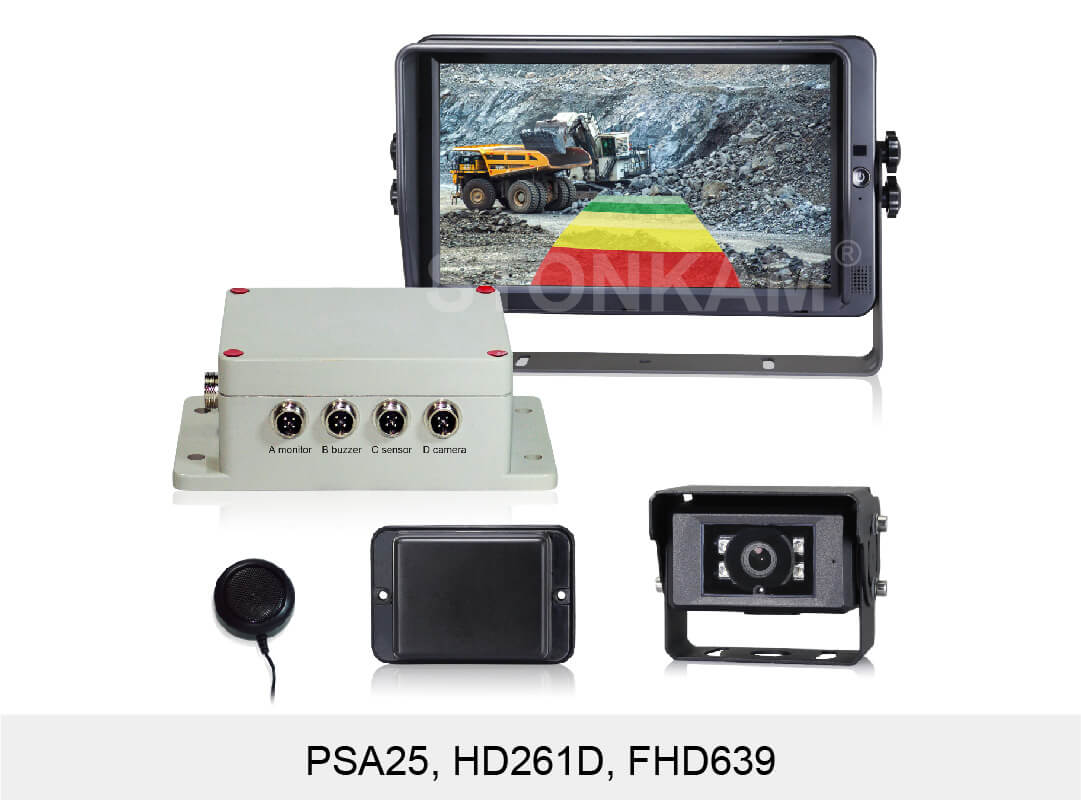

(Model:PS-A25, HD-261D, FHD-639)
1080P 24GHz Radar Detection System
Features

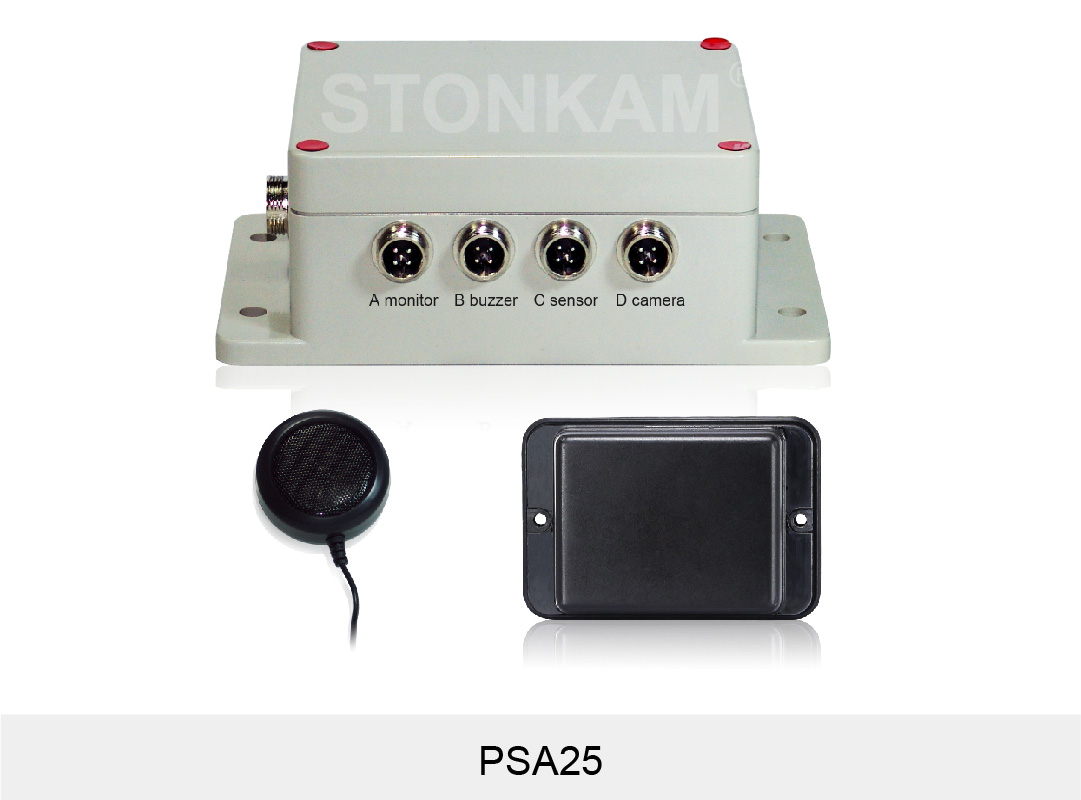

Radar Sensor (PS-A25):
  • 1080P
  • 24GHz Millimeter-wave Radar Technology
  • Detection Range: 0.1~20m
  • Width Limit: 2-12m
  • AHD Video fusion, map layer overlapping alarm
  • Detection distance and alarm mode can be set on the computer by connecting the control box to computer with a USB to UART conversion cable
  • Support Wi-Fi connection, users can configure the detection distance and alarm mode by computer or mobile phone (optional)
  • Work 24 hours


7 inch HD Monitor (HD-261D):

  •  Support 4CH x 1080P / 720P cameras
  •  Video Input: 4 x Aviation Port, 4 x Trigger
  •  Contrast: 800:1
  •  Resolution: 1024*600
  •  Brightness: 600cd/m2
  •  Power consumption: approx. 8W
  •  DC: 10-32V


1080P HD Camera (FHD-639):

  • Flexible installation: Can be mounted on rear, front, or either side of vehicles
  •  Waterproof, shatterproof protection level equals to IP69K.Anti-vibration level equals to 5.9g
  •  Clear picture even at night due to sensor of low illumination and good performance, and IR led lights
  •  Performs in rugged conditions. Operating temperature: -20ºC +70ºC
  •  Mirror/ Normal image switch
  •  25 frames / 30 frames selectable
  •  with audio
  •  Lens angle: 130°, 110°, 100°, 70°, 50°, 35°
  •  IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight.
  •  Waterproof and weather resistant housing for outdoor use




Specification

Frequency 24.00...24.20GHz
Transmitter Type FMCW
Power Supply 10 to 32V DC
Detection Range Detection length limit 0.1~20m, width limit 2~12m, up to 5 detection zones(distance of each zone can be configured )
Detection Zone Visualization Green (furthest), Yellow(middle), Red (closest)
Detection Tolerance +/- 30 cm
Antenna Beam Angle 56° (Horizontal), 40° (Vertical)
Trigger Input ×1 Trigger from vehicle, high active
Range above +10Vdc, up to supply voltage
Alarm Output ×1 Switched to Ground when activated
Loading up to 1.0A
Video format 720P 25fps/30fps, 1080P 25fps/30fps
Wi-Fi module 2.4GHz(Option)
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
IP Protection IP69K (sensor),IP66(Control Box)
Vibration Rating 5.9G
Dimensions Sensor: 106.6(W) ×72.6(H) ×32.4(D) mm
Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm
Weight 154.6Grams (sensor),  240Grams (control box)
Mounting Two (4.5mm) diameter mounting holes (sensor)
Four (6mm) diameter mounting holes (control box)



Truck have blind spots

Due to their size and length, trucks have larger blind spots than the average car. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck – can they see you?


To Be Truck Aware, Come to STONKAM CO.,LTD for a Security Solution.




STONKAM 1080P 24GHz Radar Detection System

It is a realiable radar of advanced microwave technology applied for heavy duty equipements and commercial vehicles, which can provide visual and audible alert to operators to avoid potential danger and allow them to take proper actions in advance



Parking Sensor Kits-large angle radar detection system




Using microwave technology,

not affected by weather conditions, working 24 hours


Radar Detection System





Can penetrate the plastic bumperand install inside.

Easy installation

1080P 24GHz Radar Detection System




Long detection range, high sensitivity, max detection range of 20m


1080P Radar Detection System


Distance of each zone and detection range can be configured


Conditions Visual
Buzzer
No Object Detected
None Off
Object in Zone 5
Green
Bi-Bi-Bi
Object in Zone 4
Green BiBi-BiBi-BiBi
Object in Zone 3
Yellow
BiBiBi-BiBiBi-BiBiBi
Object in Zone 2
Yellow
BiBiBiBi-BiBiBiBi-BiBiBiBi
Object in Zone 1
Red
Constant tone

Applications
1080P 24GHz Radar Detection System
Connection
1080P 24GHz Radar Detection System-connection

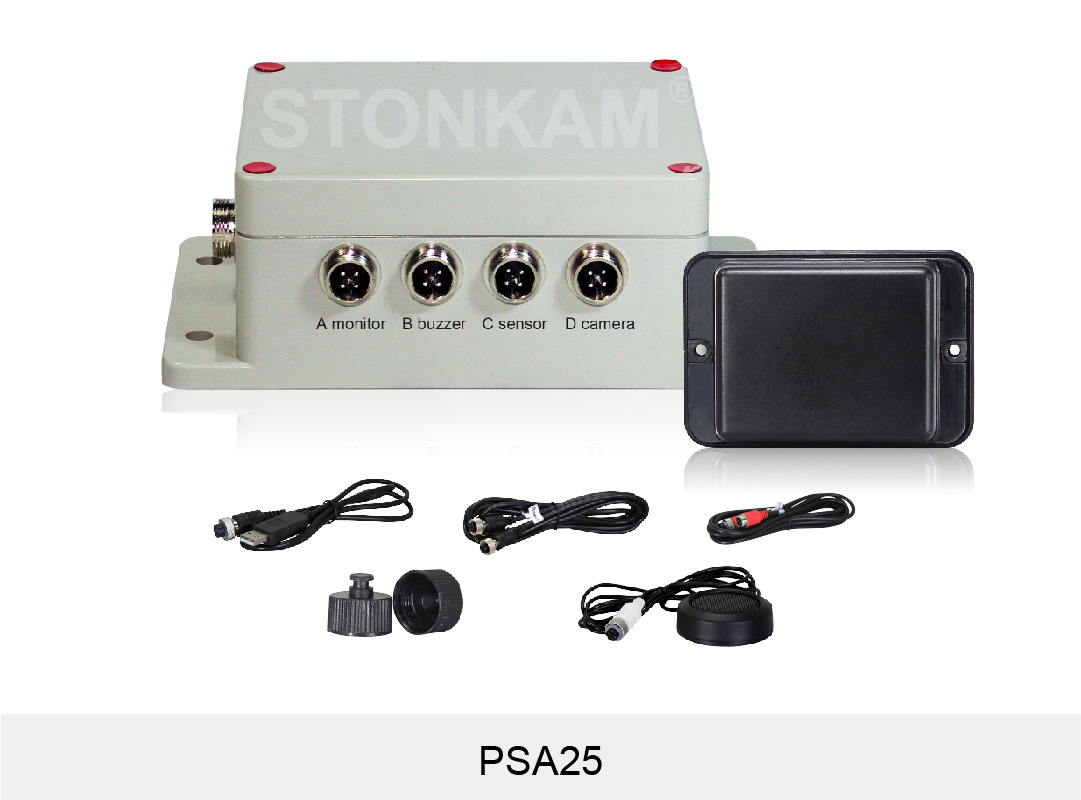

Accessories

Radar:


Camera cable (4pin)

Extension cable (4pin)

Sensor transition Cable

Dual Sensors Transition Cable (Optional)

USB to UART Cable


Monitor Transition Cable (4pin)

Buzzer

Plug Sealer

 Sensor Mounting Brachet

 (Optional)
