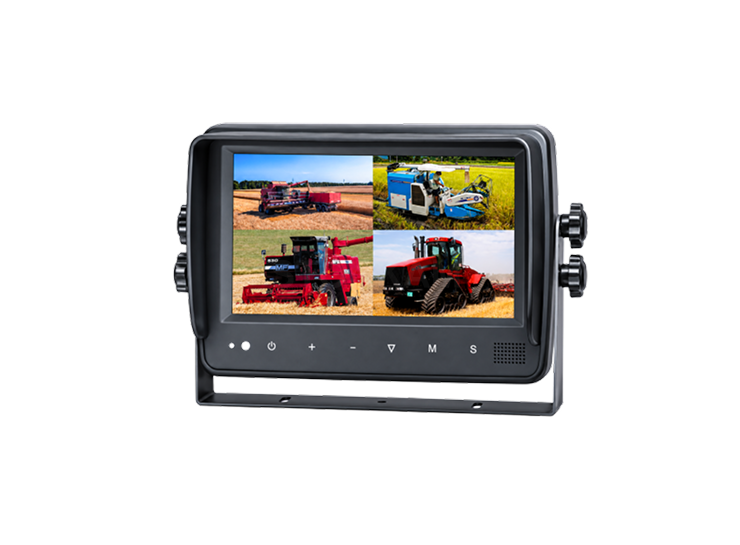

7 Inch HD Digital Wireless Monitoring System

7 Inch HD Digital Wireless Monitoring System

HDW125Q, HDW871

STONKAM® Waterproof 7 inch HD digital wireless rear view camera system is easy to install. It supports quad view, good for truck, trailer, RV, etc.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 4CH wireless camera and wireless transmitter.
The wireless vehicle monitoring monitor adopts IP66 waterproof shell, and the antenna is built in, which is beautiful and durable. The wireless monitoring camera on the vehicle is waterproof IP69K, no matter whether it is rainy, snowy or foggy, the camera will not be affected.
A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots.
Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.
With 1080P CMOS imageacquisition sensor, you can clearly view the situation around the vehicle.
The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.
Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
Rear view parking lines can be configured.

LCD Dimension	7"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:80 / D:85, R/L:85
Aspect Ratio	16:9
Channel	4 channels
Operating Frequency	2400MHz ~ 2483.5MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmission Power	FCC≤26dBm CE≤20dBm MIC≤10dBm
Decompression Form	H.264
Modulation	FHSS
Delay	200ms
Transmission Distance	FCC≤300 M CE≤200 M MIC≤60 M
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1W/8Ω
Operating Temp. & Humidity	-20~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® Waterproof 7 inch Digital Wireless Vehicle Monitor?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

wireless monitor and wireless camera

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

wireless camera system

Open transmission distance up to 984ft (300m)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

wireless camera system

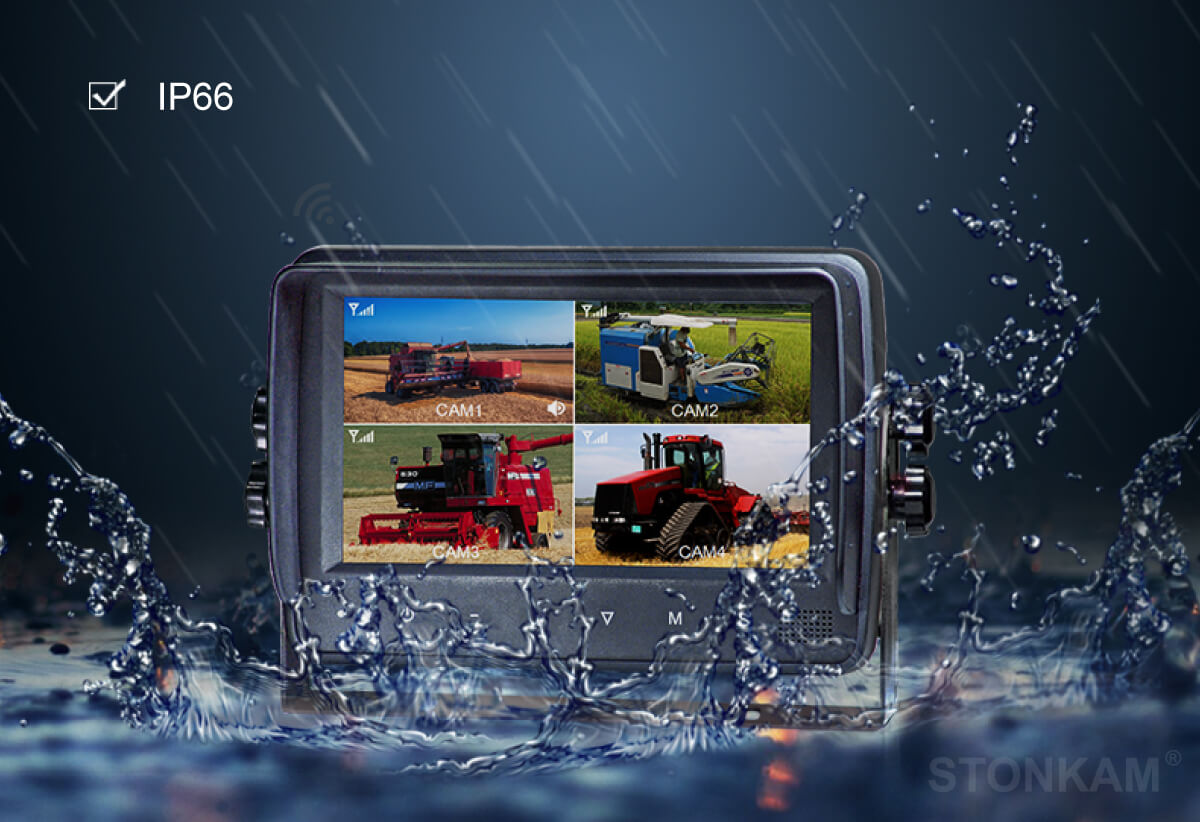

Built-in antenna and waterproof shell, beautiful and durable

IP66 Waterproof 7 inch wireless monitor adopts IP66 waterproof shell, and the antenna is built in, which is beautiful and durable. The wireless monitoring camera on the vehicle is waterproof IP69K, no matter whether it is rainy, snowy or foggy, the camera will not be affected.

IP66 Waterproof 7 inch wireless monitor

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

IP66 Waterproof 7 inch wireless monitor

Touch screen optional and easy operation

IP66 Waterproof 7 inch wireless monitor

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Forklift	Planter

Applications

STONKAM® Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 4CH wireless camera and wireless transmitter.

The wireless vehicle monitoring monitor adopts IP66 waterproof shell, and the antenna is built in, which is beautiful and durable. The wireless monitoring camera on the vehicle is waterproof IP69K, no matter whether it is rainy, snowy or foggy, the camera will not be affected.

A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots.

Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.

With 1080P CMOS imageacquisition sensor, you can clearly view the situation around the vehicle.

The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.

Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.

Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.

Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.

Rear view parking lines can be configured.

LCD Dimension

7"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:80 / D:85, R/L:85

Aspect Ratio

16:9

Channel

4 channels

Operating Frequency

2400MHz ~ 2483.5MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmission Power

FCC≤26dBm

CE≤20dBm

MIC≤10dBm

Decompression Form

H.264

Modulation

FHSS

Delay

200ms

Transmission Distance

FCC≤300 M

CE≤200 M

MIC≤60 M

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1W/8Ω

Operating Temp. & Humidity

-20~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® Waterproof 7 inch Digital Wireless Vehicle Monitor?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Open transmission distance up to 984ft (300m)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

Built-in antenna and waterproof shell, beautiful and durable

IP66 Waterproof 7 inch wireless monitor adopts IP66 waterproof shell, and the antenna is built in, which is beautiful and durable. The wireless monitoring camera on the vehicle is waterproof IP69K, no matter whether it is rainy, snowy or foggy, the camera will not be affected.

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Touch screen optional and easy operation

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor can be applied to various vehicles, such as forklift, crane, harvester, etc.

Harvester

Excavator

Forklift

Forklift

Planter

Applications

STONKAM® Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.
