Vehicle Intelligent Infrared Detection System with Dual Spectrum Camera
TC639-T3

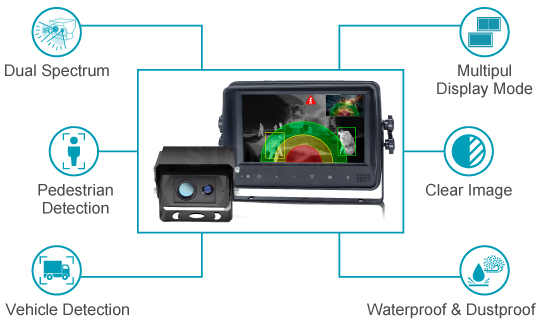

STONKAM AI vehicle infrared thermal imaging dual-spectrum detection camera appearance, clarity of the new upgrade, thermal imaging and visible light camera in one, built-in AI man-vehicle detection algorithms, to achieve dual-light screen superposition, split display and other modes. Whether it's in unsafe road conditions such as dusty, foggy days, poor lighting at night, or glare from opposite directions, it can handle the situation with ease. In addition, the dual-light vehicle-mounted infrared thermal imaging system can also provide intelligent recognition of pedestrians and vehicles in all-weather road conditions, greatly improving driving safety.
Inquire Now
Built-in Visible Light Camera module |
Resolution/Frame Rate |
HD 1920 x 1080 / 25 fps or 1920 x 1080/30 fps |
|
Focus and Viewing Angle |
8mm/40°or 6mm/52°or 2.3mm/130° (TC639-T3)6mmor2.3mm/52° (TC639-T2) |
||
Infrared Camera Module |
Resolution/Frame Rate |
384 x 288/ 25 fps (TC639-T3)256 x 192 (TC639-T2) |
|
Viewing Angle |
28° (TC639-T3)51° (TC639-T2) |
||
Video Output |
AHD(1.0Vp-p,75Ohm) |
||
Audio Output |
Alarm Output |
||
Communication Interface |
USB 2.0 (for software upgrade) |
||
Power Supply |
DC 12~32V |
||
Power Consumption (12V IN) |
385±20mA |
||
Cable Length |
Equipment out 0.5m (8pin connector) |
||
Operating Temperature |
-20 ~ +70°C |
||
Storage Temperature |
-30 ~ +80°C |
||
Waterproof Rating |
IP69K |
||
Pixel Size |
94.5*64*66.5 |
||
Weight |
450g |
||
Housing Color |
Black |
Why do we need STONKAM AI Vehicle Thermal Infrared Imaging Camera? |
