Infrared Thermal Imaging Driver Assistance System

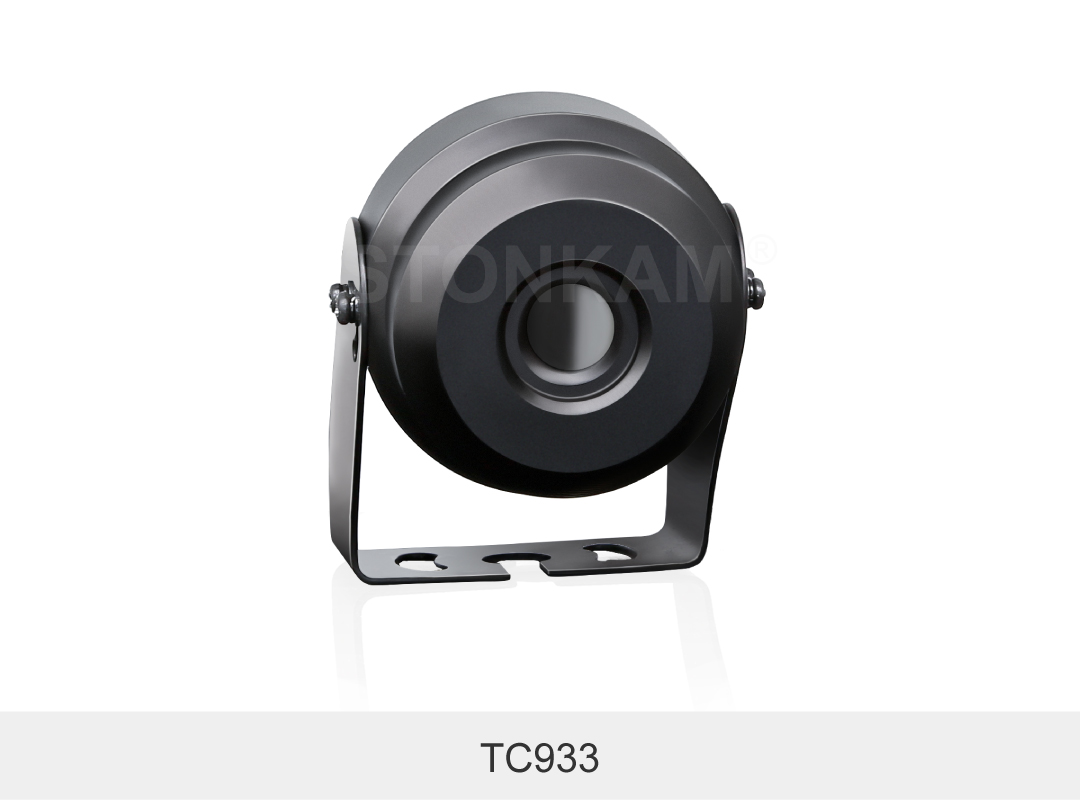

(Model:TC933)
Infrared Thermal Imaging Driver Assistance System
Features

STONKAM Infrared Thermal Imaging Driver Assistance System can solve visual problems in dark night, foggy day and glare environment by combining thermal imaging with visible light detection on pedestrians & vehicles and displaying their images at the same time. This system also features quick and accurate recognition, stability and easy installation. It can be widely applied to construction machines to ensure operation safety.



  • Easy installation
  • IP69K waterproof and dustproof; 5.9g anti-vibration rating
  • Pedestrian detection range: 0.5M-15M
  • Vehicle detection range: 0.5M-40M
  • Infrared camera lens: 3.2mm, 53° horizontal viewing angle
  • Visible light camera lens: 6mm/2.3mm, 50°/140° horizontal viewing angle
  • FHD 1920X1080P video output (with pedestrian & vehicle detection frame and alarm frame)
  • Dual display, infrared image overlapping a small part of normal image
  • Alarm audio output to monitor or other devices with loudspeaker for sending sound alarms
  • Settings and calibration on web on mobile phone by connecting with WIFI hotspot
  • Automatic upgrading by USB flash drive

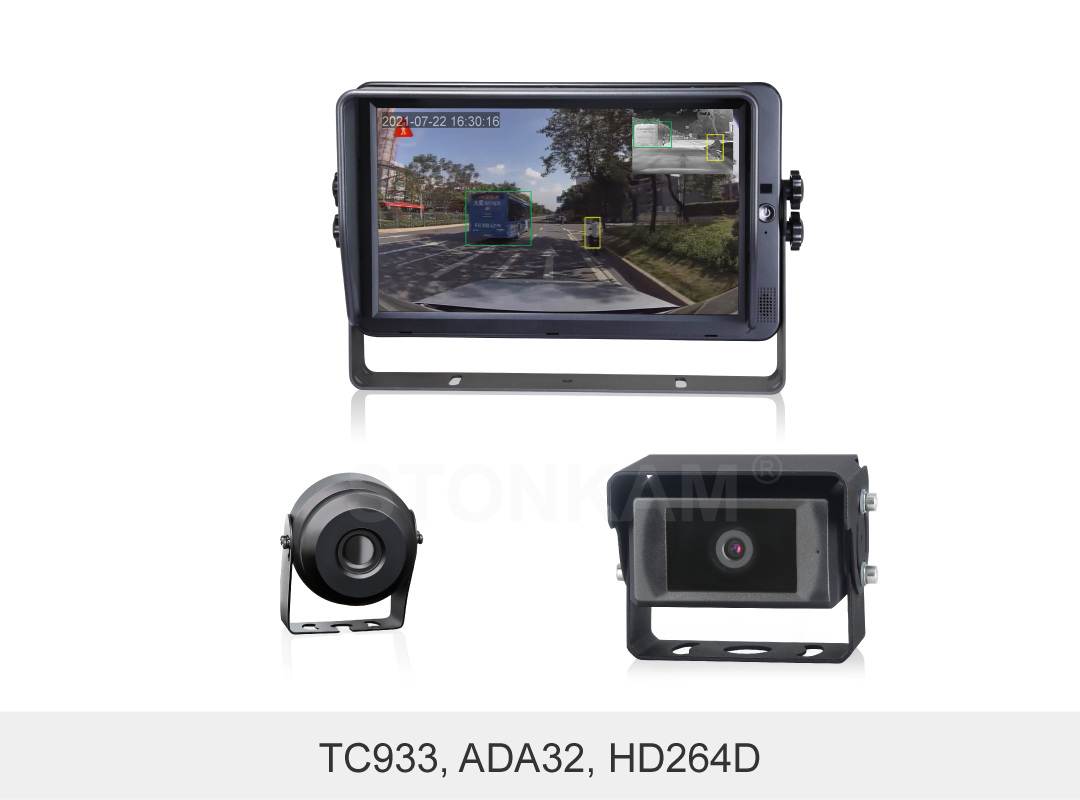

Thermal imaging system

Specification
Power Supply
10 to 360V DC
Maximum Consumption
2.5W
External Connector
8Pin mouse male connector on device; 4pin mouse female connector(power, video, audio), USB2.0 female connector and I/O alarm output wire on transition cable
Infrared camera module
256X192/25f
Built-in Visible Light Camera module
1920X1080P/25for 1920X1080P/30f
Video Output
1CH,AHD,1920X1080P
Working Temperature
-20to+70°C
Storage Temperature
-40~85℃
Infrared Camera Size
83X73X38(mm)
Visible Light Camera Size
95X60X70(mm)
Weight
640g
Color
Black


Why do we need Infrared Thermal Imaging Driver Assistance System?



Construction machines work in complicated environment, where roads are too dark to be seen at night and bad weather or strong light often affect driving vision. Drivers cannot see pedestrians and vehicles clearly in these situations, which is a big challenge to driving safety!

Infrared Thermal Imaging Driver Assistance System

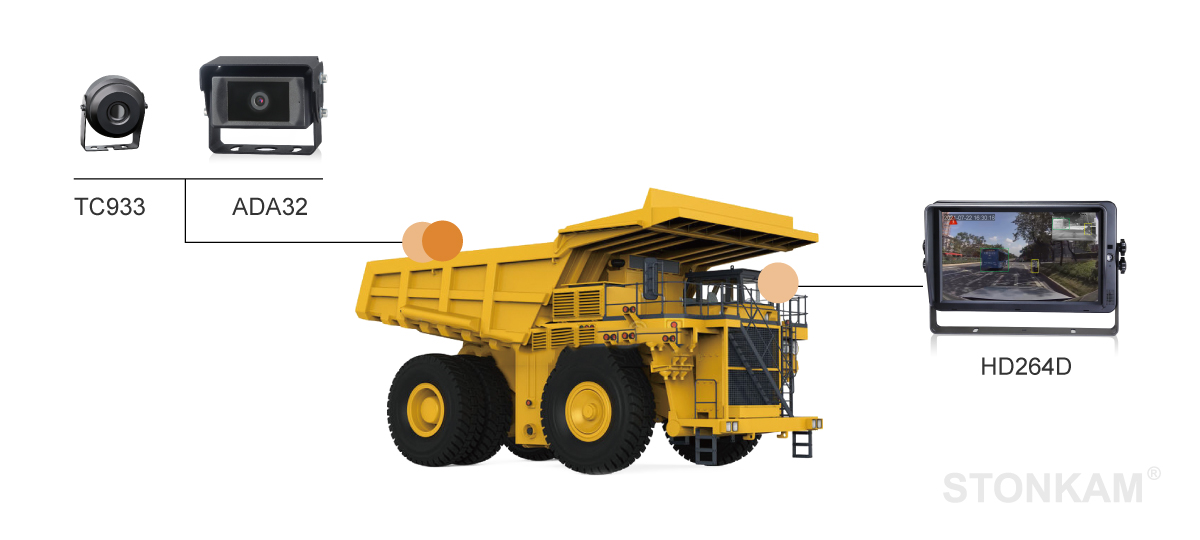

STONKAM Infrared Thermal Imaging Driver Assistance System solves driving vision problem!




hd infrared waterproof camera

Dual display, double protection

STONKAM Infrared Thermal Imaging Driver Assistance System can display visible light image and strong light image at the same time to ensure clear field of view on roads no matter what kind of environment you are in!

hd infrared waterproof camera

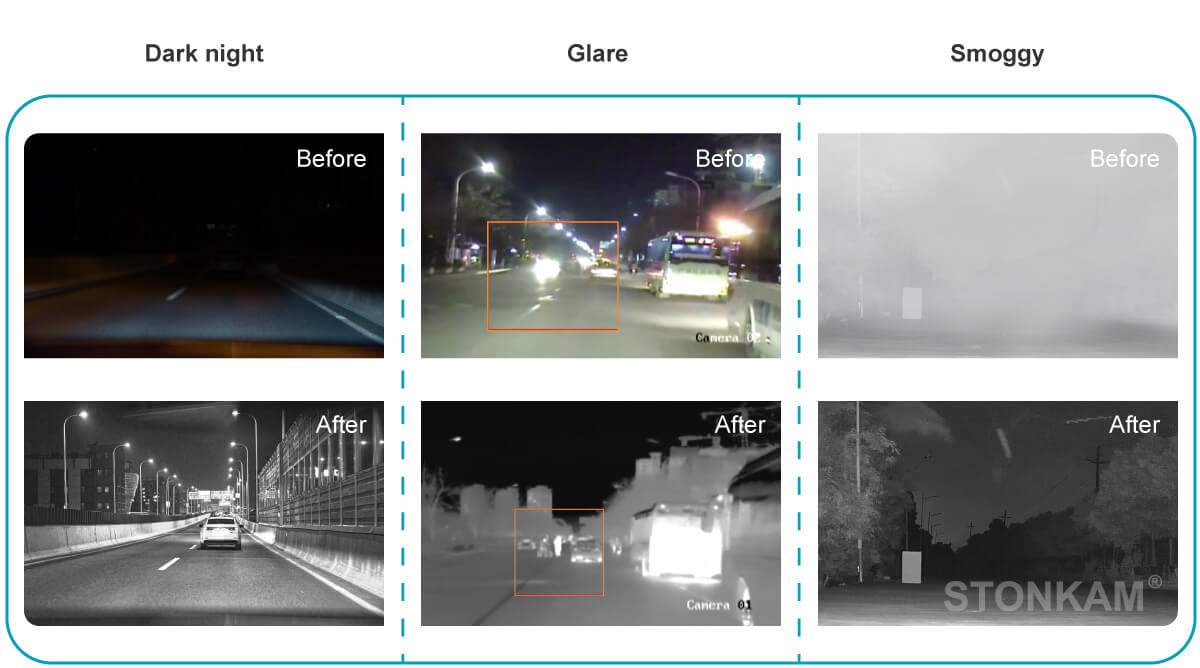

Anti-glare and penetrating smog

This thermal imaging device can protect driving vision against opposite vehicle headlights to ensure driving safety.


hd infrared waterproof camera



Detect pedestrian and vehicles to alert potential dangers

hd infrared waterproof camera



Applications

STONKAM Infrared Thermal Imaging Driver Assistance System can be widely applied to various industrial machines to ensure operation safety!

hd infrared waterproof camera
