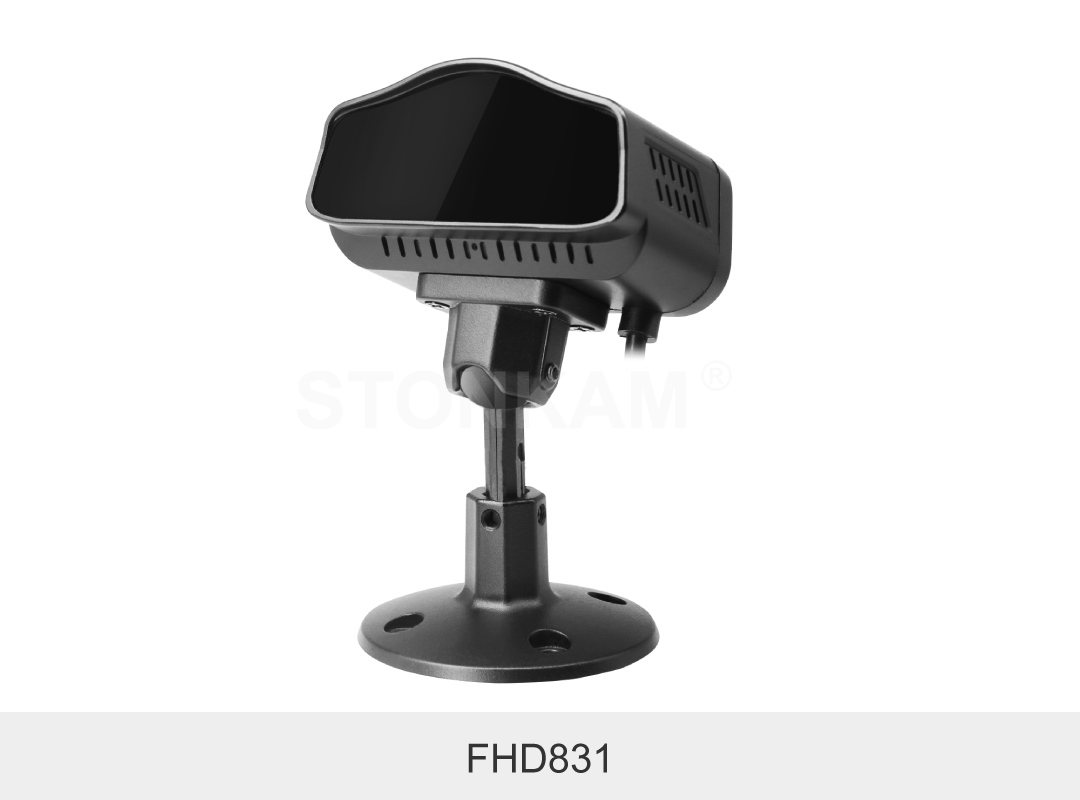

1080P HD DMS Camera for Driver Status Monitoring

FHD831

DMS Camera for Driver Status Monitoring can integrate with STONKAM Intelligent MDVR System to detect fatigue, distraction and other driving misbehaviors and alert drivers to driving safety. The camera's installation is convenient and doesn't need to drill holes. Moreover, the camera has wide dynamic range, suitable for different lightning enviroment. Its image remains in high quality even when the camera is against the light or facing glaring sunlight.

Inquire Now

Leave your message and contact details, we will try to get back to you!

Model No. Introduce yourself * Message *

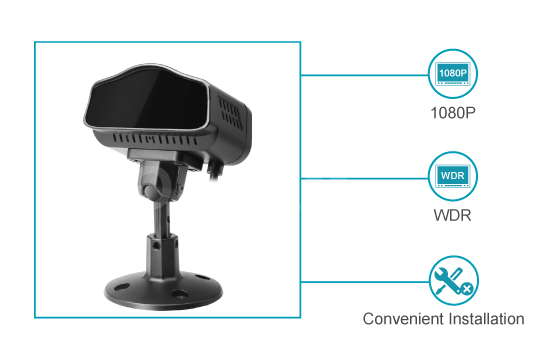

Features

►Driver Status Detection - The camera can connect with MDVR to help monitor driver behaviors and remind them of safe driving when fatigue, distraction or other misbehavior is detected.

►Convenient Installation - The camera can be installed without drilling holes, saving cost and labor.

►WDR - The camera has wide dynamic range, suitable for different lightning enviroment.

Image Device

1/2.7"CMOS

Frame Rate

25

Effective Pixels

1920(H)x1080(V)

Pixel pitch

3.0um*3.0um

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080p

Video Output

1.0Vp-p,75Ohm

Gamma Consumption

0.45

S/N

38dB

White Balance

Auto

Exposure

Auto

Dynamic Range

85dB

Power Supply

DC12V

Operating Temperature

–20℃ ~60℃, RH95%MAX.

Storage Temperature

–25℃ ~80℃, RH95%MAX.

Viewing Angle

56° horizontal, 31° vertical

Lens

4G

Image Mode

Black and White

Power Consumption

2.004WW(+/-10%)

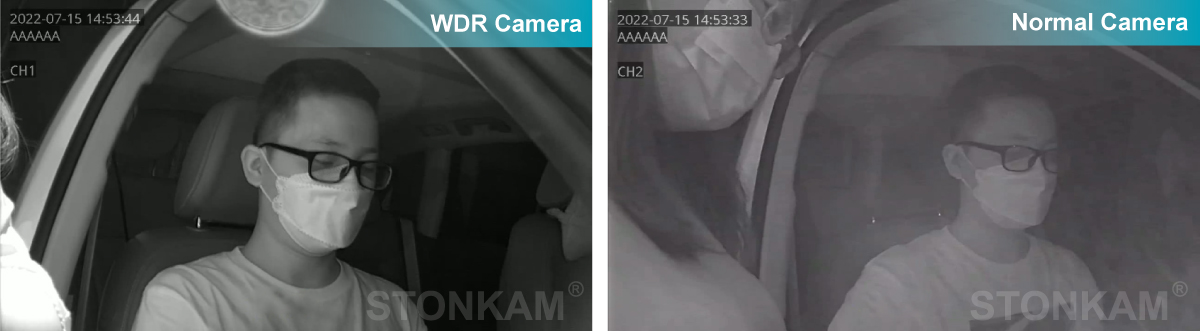

WDR Ensuring Image Quality Even in Glaring Light

The camera has wide dynamic range, suitable for different lightning enviroment. Its image remains in high quality and its detection is still precise even when the camera is against the light or facing glaring sunlight.

Driver Status Monitoring

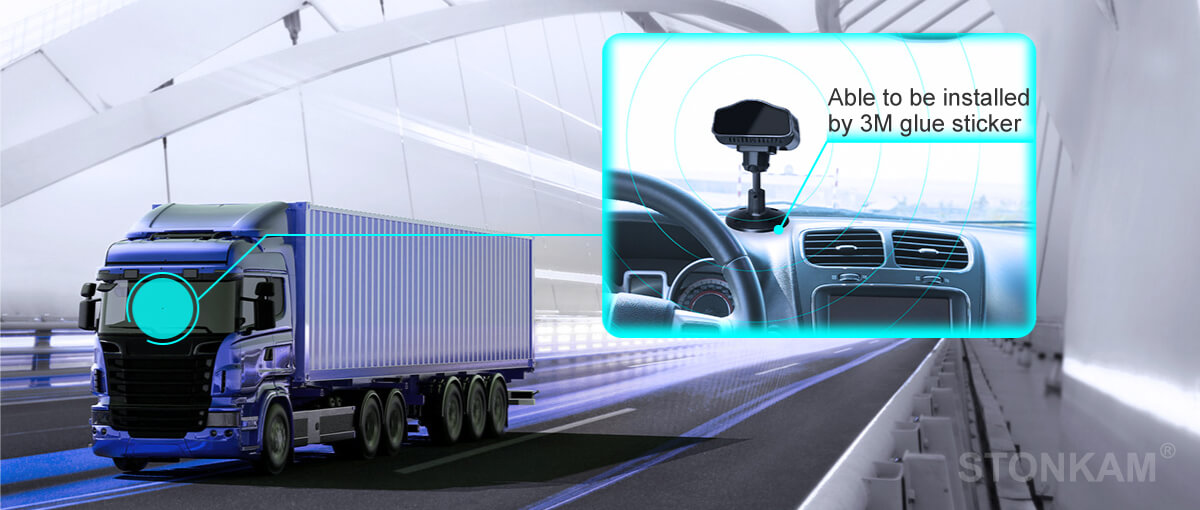

Convenient Installation without Drilling Holes, Saving Cost and Labor

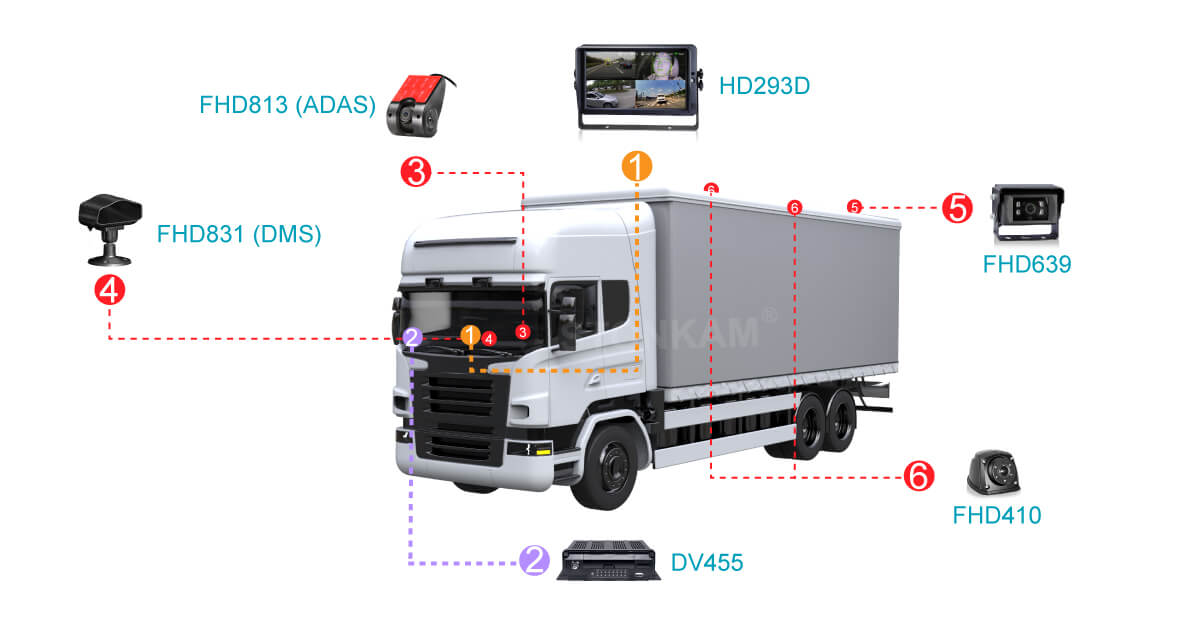

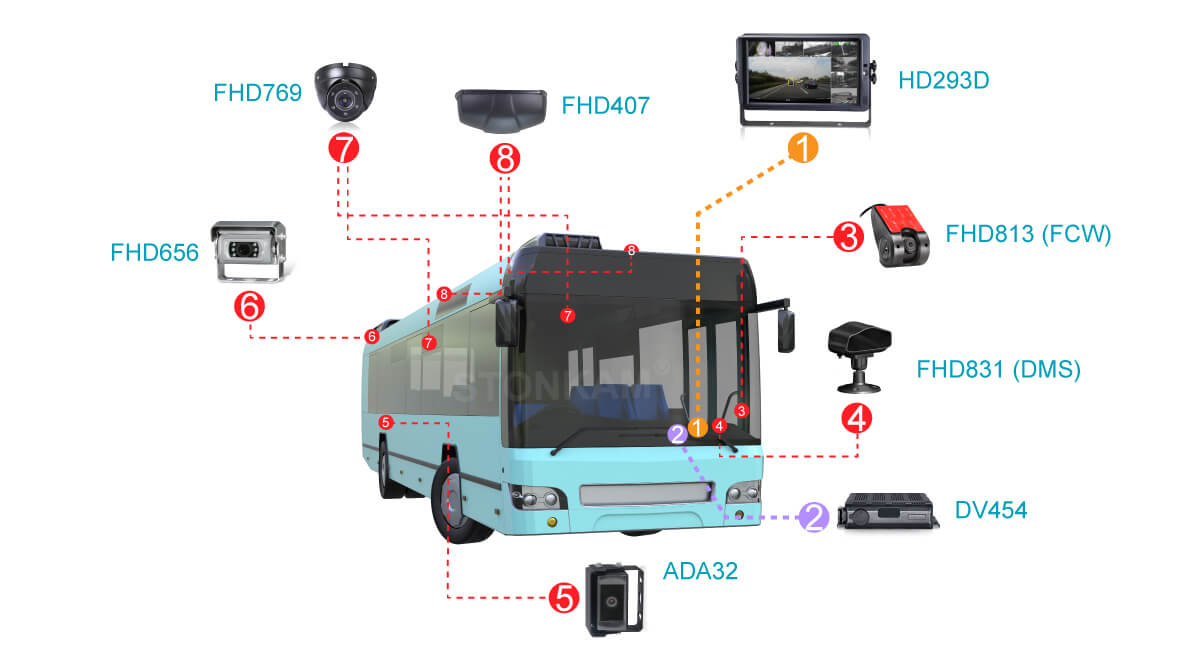

Driver Status Monitoring System



Application

DMS Camera for Driver Status Monitoring can integrate with STONKAM MDVR System as professional and reliable fleet mangement solution for trucks, taxis, commercial vehicles, etc.
Driver Bahavior Analysing Camera
Driver Status Monitoring
